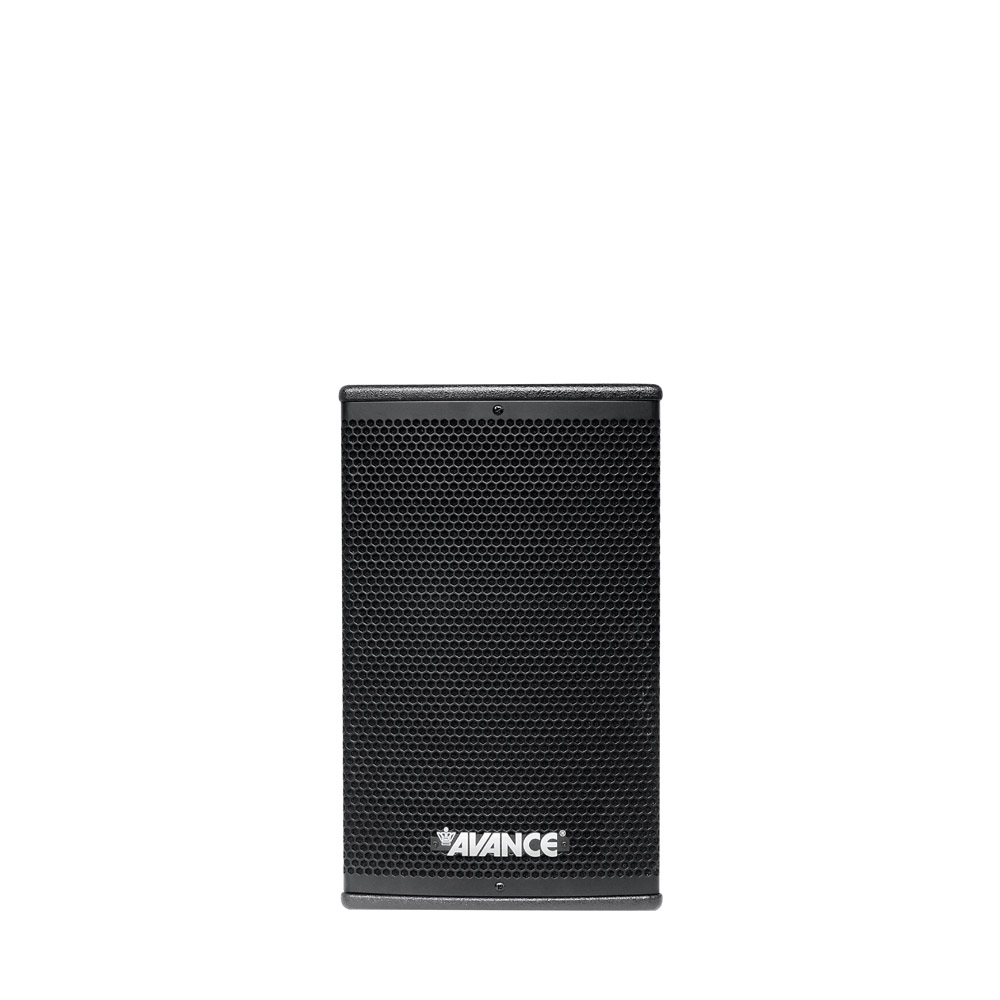

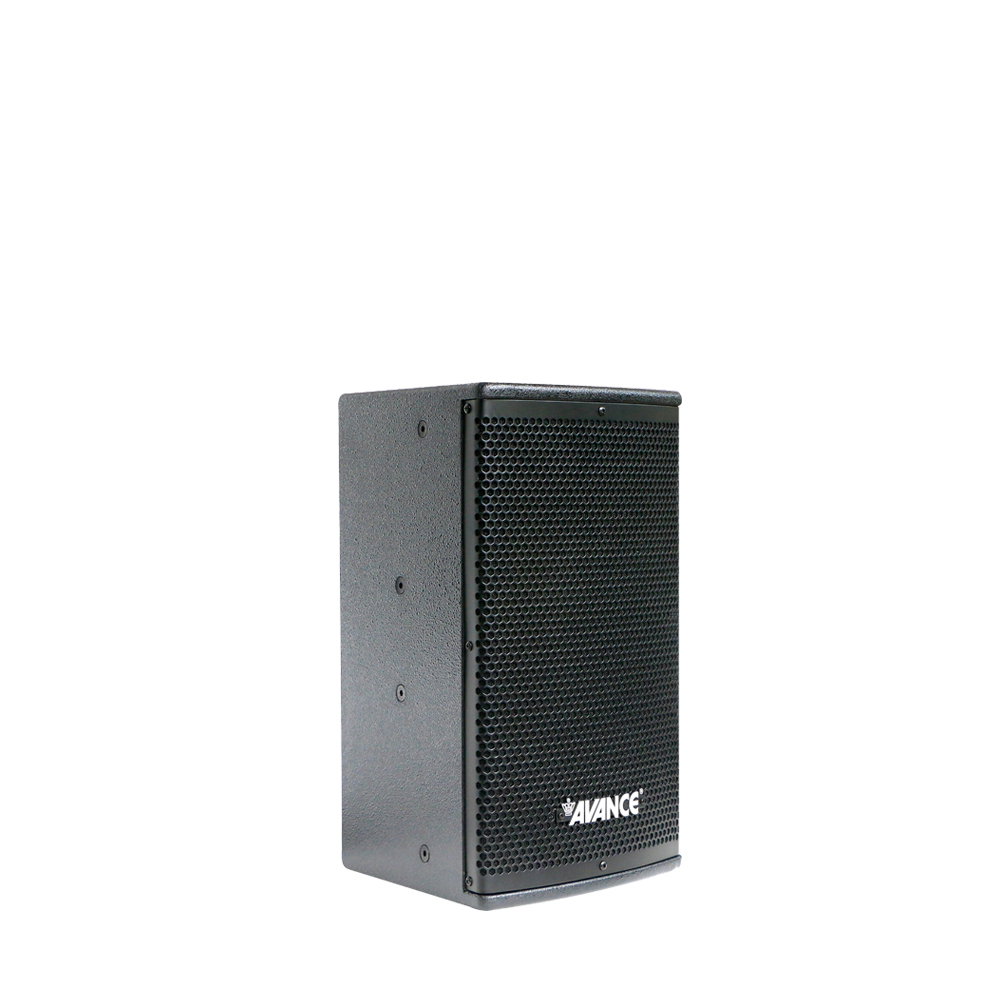

K-408
Features
Specification
Description

Professional 8-inch speakers can be used for sound reinforcement in conference rooms, multi-function halls, churches, auxiliary sound reinforcement, small and medium-sized outdoor commercial performances, etc.;

◆Multi-purpose four-sided trapezoidal box design, K-408 speaker's clean and simple appearance, steel mesh groove design, highlight the high-end atmosphere of this product grade, the design is stable and elegant. Can be used for main sound reinforcement or auxiliary sound supplement, two-way frequency design, high cost performance;

◆The mid-to-high frequency part adopts straight-through crossover design; presents the most original mid-to-high sound quality. In outdoor performances and language sound reinforcement occasions, the high-frequency is delicate and penetrating, and the mid-range is clear and clean;

◆ 5 hanging installation points, can be hung horizontally or vertically; with bracket jack at the bottom;

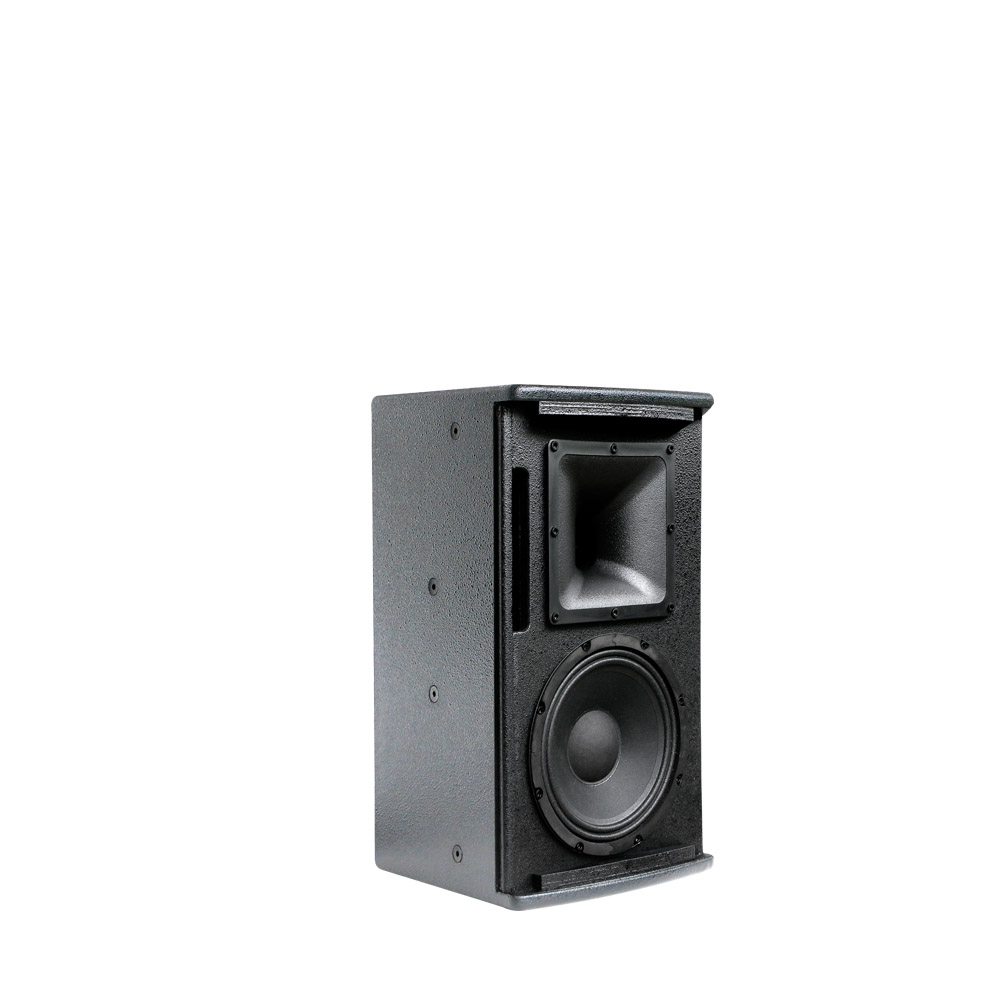

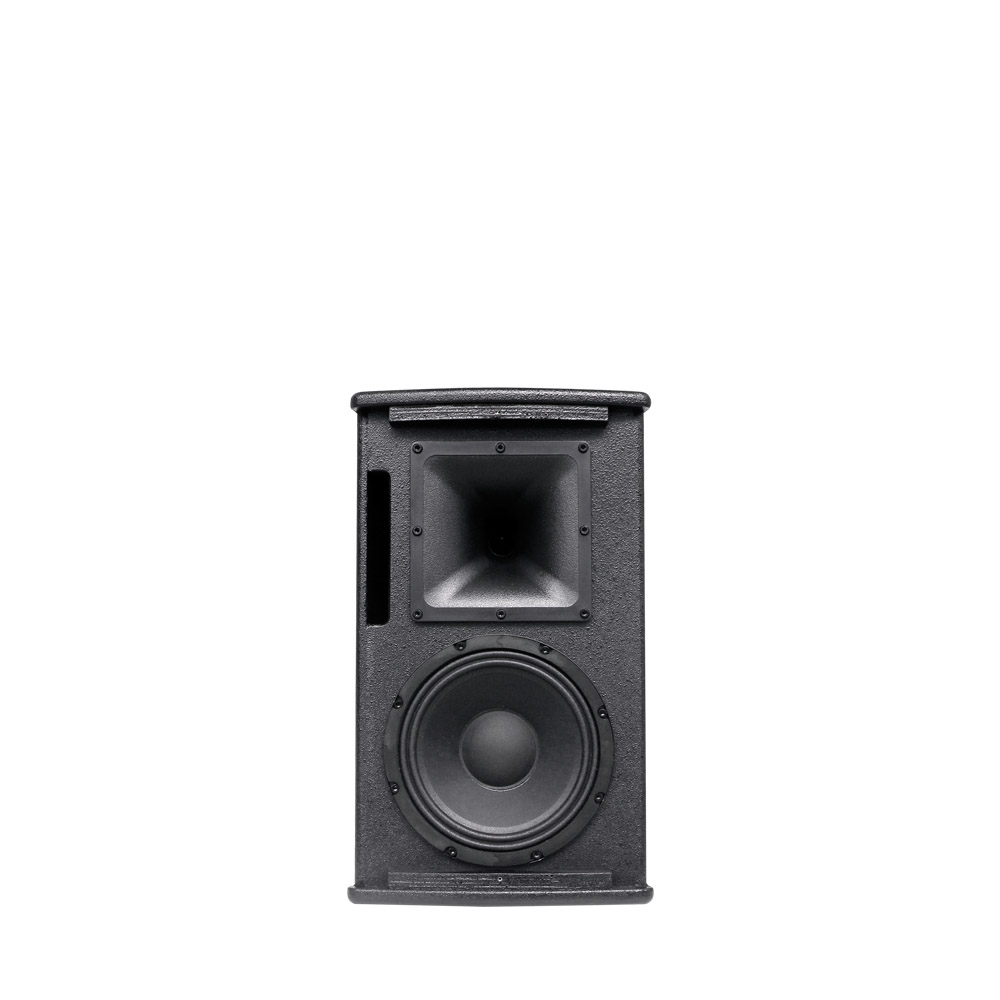

◆Two-way full-range speaker consisting of 8-inch low-frequency driver unit and 1-inch compression-driven tweeter unit

Product model: K-408

System type: 2-way 1x8"

Unit composition: treble: 1*1 inch throat plug/1*1 inch titanium membrane voice coil;

Bass: 8 inch woofer 1* 1.4 inch voice coil;

Frequency response (±3dB): 80Hz-18KHz;

Coverage angle: 90 degrees (H) × 50 degrees (V);

Sensitivity (1W/1m): 93dB/1W 1 meter;

Continuous sound pressure level: 115dB;

Peak sound pressure level: 121dB;

Standard impedance: 8Ω;

Input power: 150W (rated)/300W (peak);

Box plate: 15mm MDF;

Installation method: 5 M8 lifting screw holes; 1 bottom support hole;

Mesh: Hexagonal mesh made of molded steel;

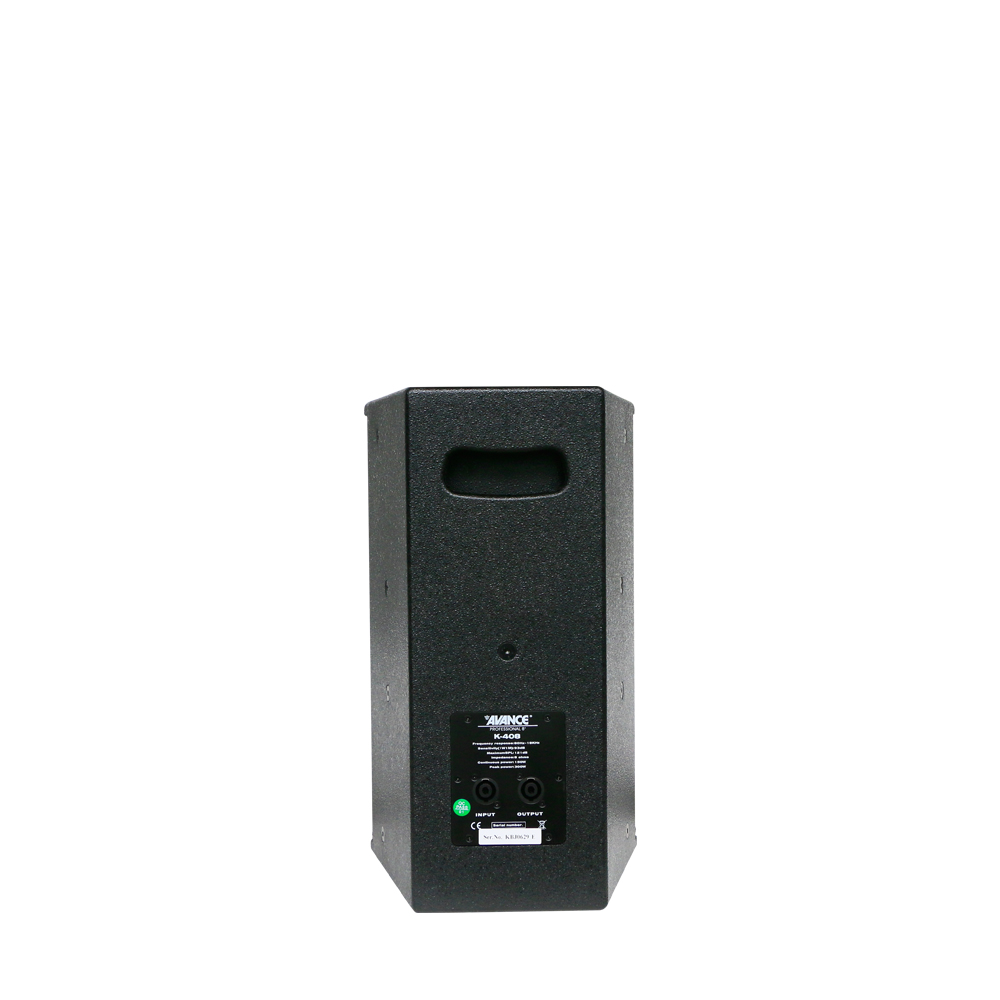

Input connector: 2 NL4 sockets;

Connection: 1+, 1- or 2+, 2-;

Product size (W×D×H): 280×270×465mm;

Net weight: 10Kg;
