MAGNUM Series

SCAN-SPEAK high-end fever unit configuration



The crossover adopts the unique joint design of the AVANCE

location:Home >Product List >Hi-Fi sound >MAGNUM Series >MAGNUM 2
MAGNUM 2

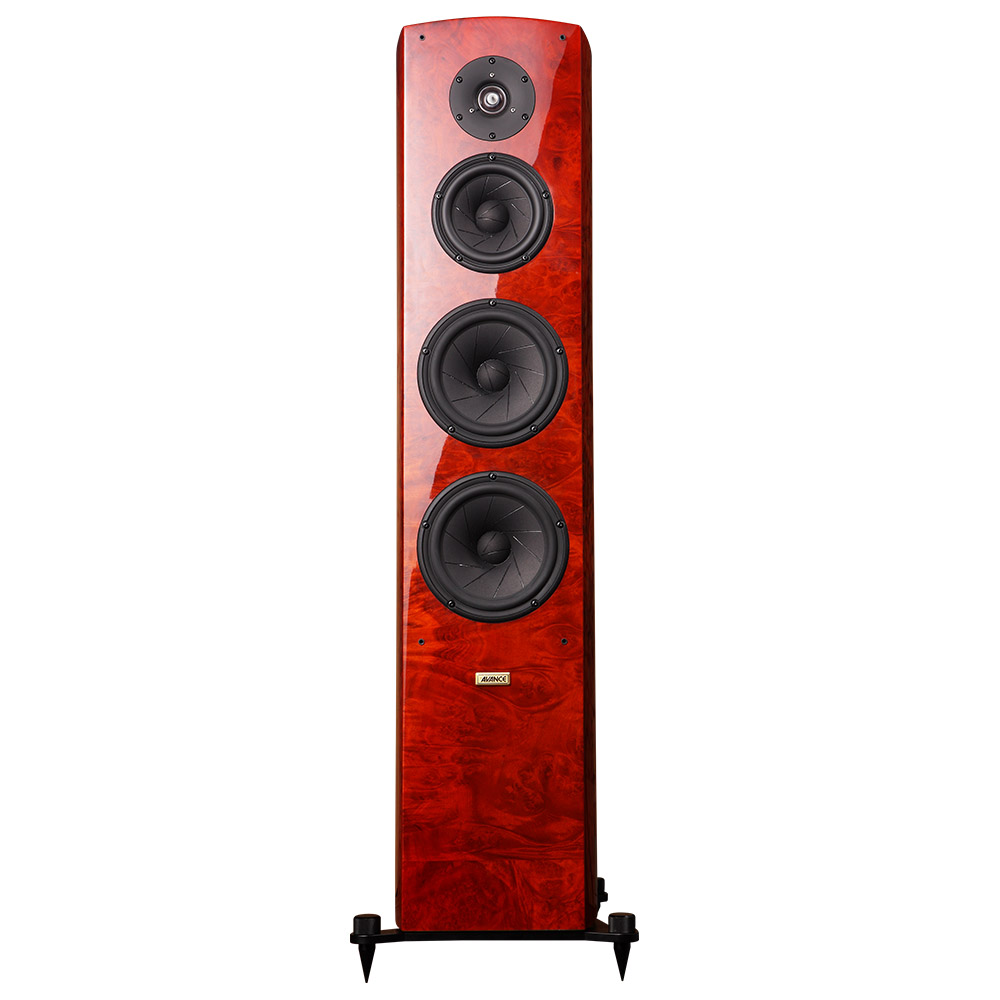

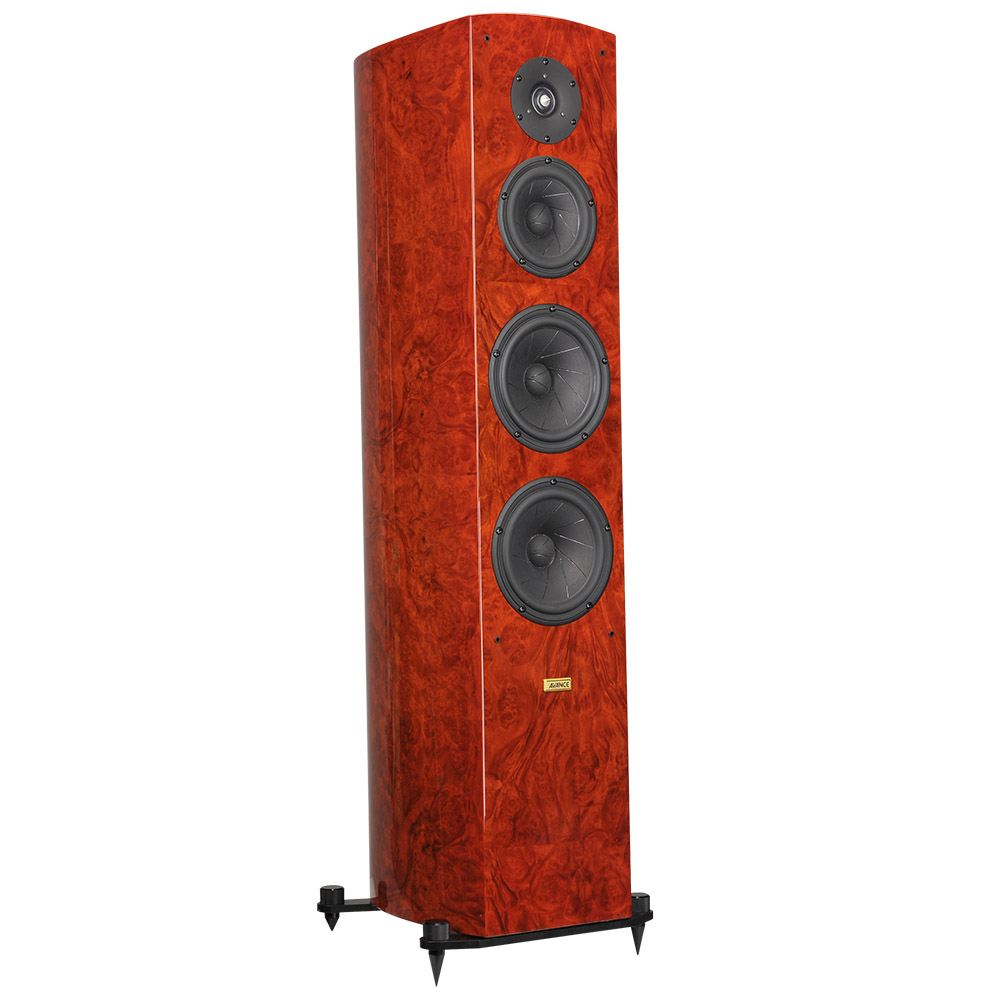

The cabinet is made of rare and precious rosewood, and then polished with 7 layers of fine piano paint, the appearance is extremely noble. The unique design of the curved side baffle to gather backwards can better reduce the harmful resonance generated by
特性
规格特性
产品图片
产品说明

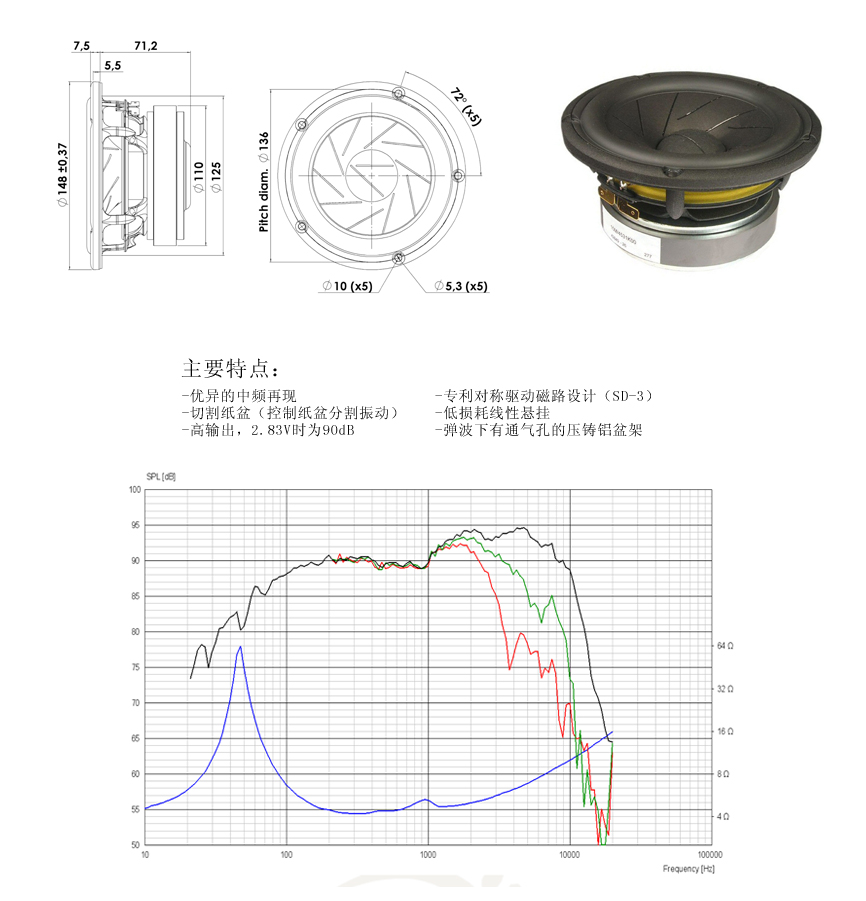

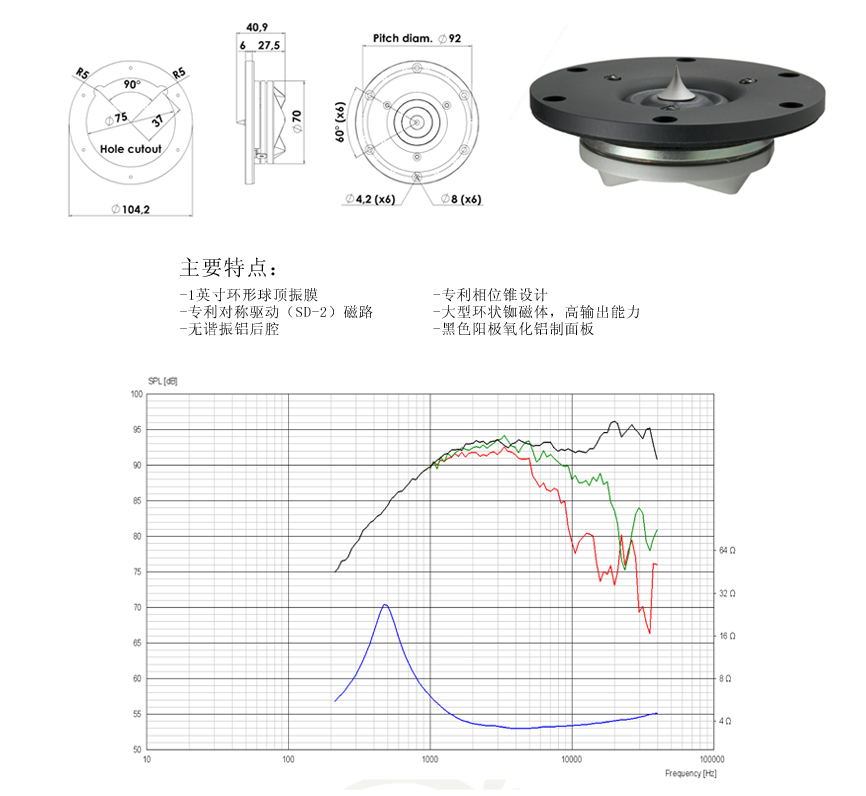

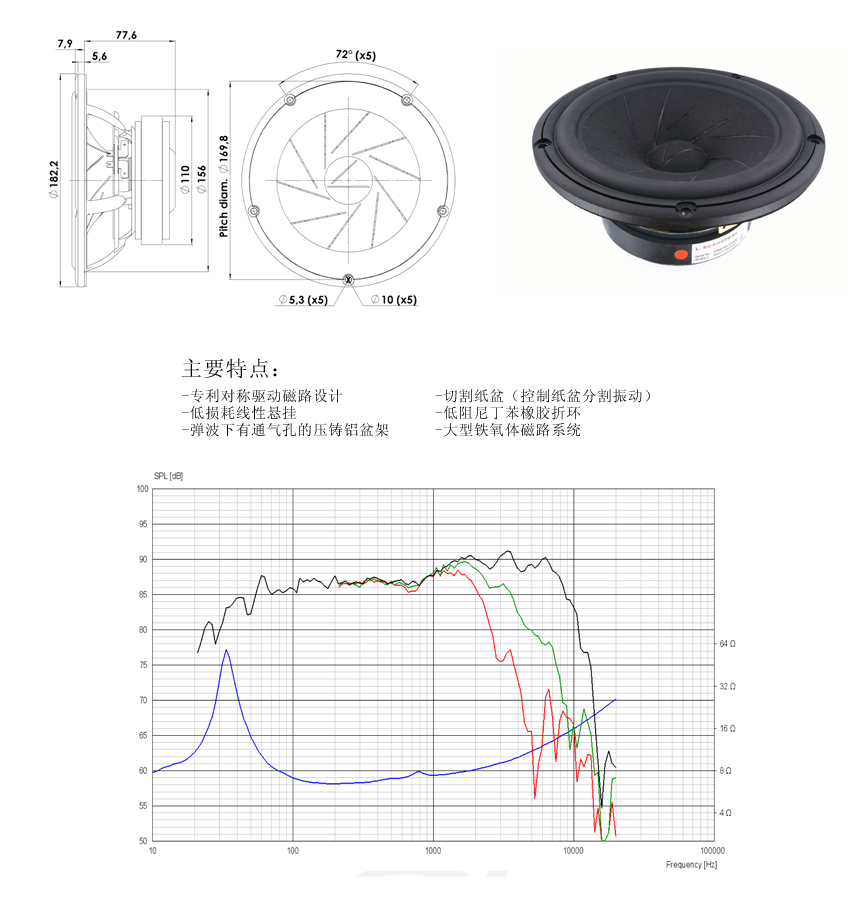

The tweeter is ScanSpeak's current high-end dual-fold ring diaphragm ultra-dynamic unit. The sharp phase cone at the center of the silk diaphragm is conducive to improving the extension of UHF; the mid-bass unit is also ScanSpeak's high-end product. It is made of organic polymer containing high-strength materials such as magnesium and silicon, the voice coil is made of copper-clad aluminum wire, and the basin frame is also designed to prevent eddy current.



The treble is delicate and soft, and the transient response is excellent. The texture brought by the vocals and strings is very strong. The timbre orientation of the mid-range part is thick and mellow. It is excellent in expressing classical music when playing classical music. It is magnificent and free to send and receive; the sound of woodwind instruments is restored to a strong sense of reality, and the tone of the string group is also very good. , That is a rare, very natural balance performance.

Product parameters:

Frequency range 30Hz~40KHz

Rated impedance 4Ω

Sensitivity 88dB

Rated power 50W~150W

Tweeter 1x1"Scanspeak

Midrange unit 1x5.25" Scanspeak

Woofer 2x6.5" Scanspeak

Product Net Weight 35Kg/pc

Product size 250x378x1145mm

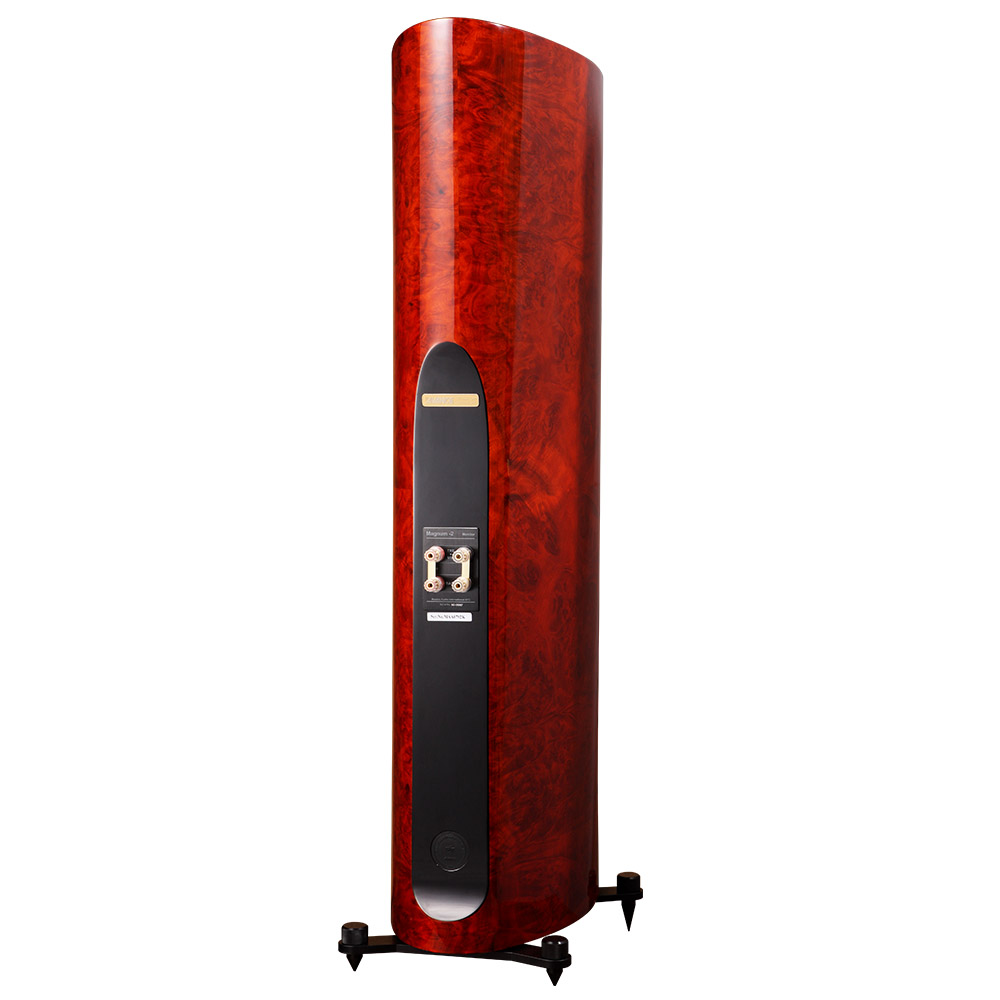

Terminal block

Home renderings:
