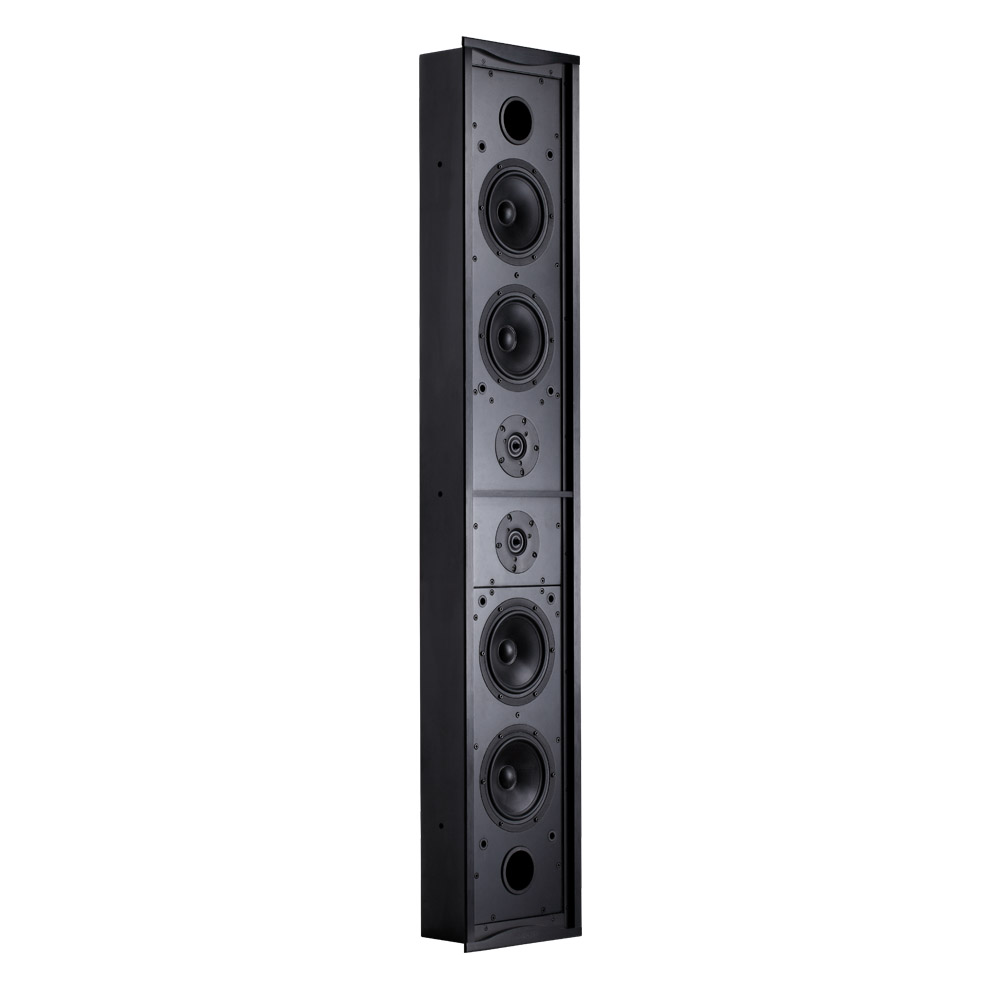

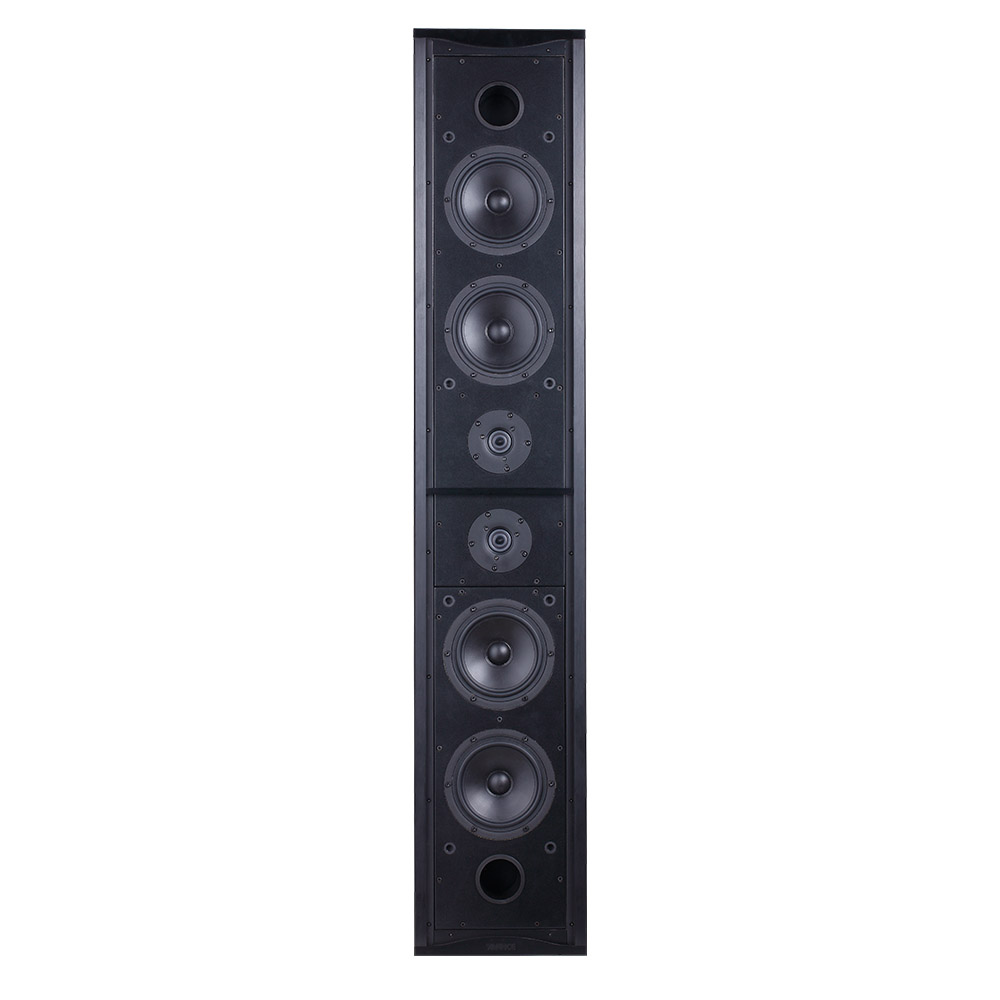

IW-66
How can we integrate multi-channel speaker systems into fashionable homes more concisely? AVANCE has launched a new ultra-thin IW series embedded wall-mounted speaker system for stylish home and professional home theater environments.
characteristic
specifications
pictures
explain
video

For the acoustic problems of ultra-thin speakers, AVANCE uses ScanSpeak's newly developed mid-bass and tweeters to bring a thicker and brighter sound performance through innovative technology. The tweeter is a folded ring diaphragm bullet head ultra-dynamic unit specially customized by ScanSpeak. The phase cone of the bullet head located in the center of the silk diaphragm is beneficial to improve the extension of high frequencies; the mid-bass unit is also ScanSpeak's high-end product. Made of high-strength organic polymer, coupled with the unique damping coating of the crown, the voice coil is made of copper-clad aluminum wire, and the frame is designed with anti-eddy current. The sound performance is very comprehensive, the treble is slender and soft, the transient response is excellent, and the texture brought by the restoration of vocals and strings is quite strong. Play different types of surround sound programs, including exciting action movies, splendid large-scale concerts and symphonies, and meticulous and beautiful multi-channel Hi-Fi music. The sound style of IW-66 is fully displayed in front of you-thick and smooth sound , Rich sense of detail and envelopment, perfect sound balance.

Frequency range (±3dB)                   40Hz~30KHz

Nominal impedance                          6Ω

Sensitivity (@2.83V/1m)                   92dB / Peak:105dB

Recommended matching power       80W~220W

Recommended power                       100W

Rated power (continuous/peak)        80W/300W

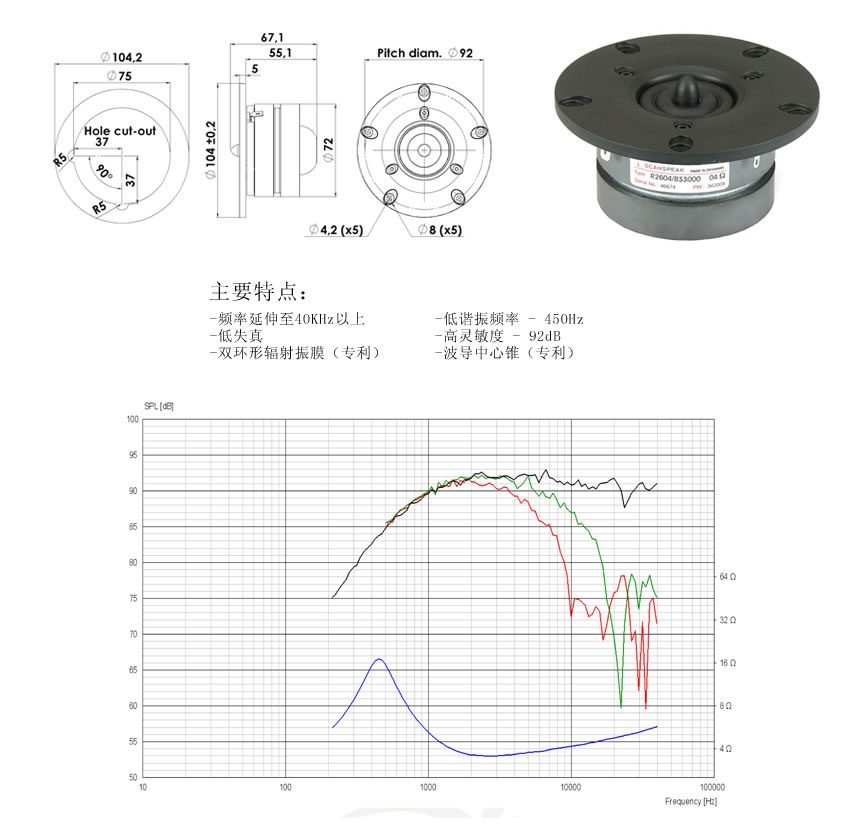

Tweeter                                             2x1" Scanspeak

Mid/woofer                                        4x6.5" Scanspeak

Product net weight                            22.5kg/piece

Product gross weight                         24.5kg/box

Product size (WxDxH)                      280x122x1500 mm

Cut-out size (WxDxH)                       260x120x1480 mm

Wiring terminal                                  Single wire partial tone

Production place                               Denmark

Theater effect:
