MAGNUM 12LE
The specially customized Scan-Speak high-end speaker unit, combined with Avance's connected sound splitter design technology, is enough to reproduce the same high-level sound quality as the multi-channel system floor box.
characteristic
specifications
pictures
explain
video

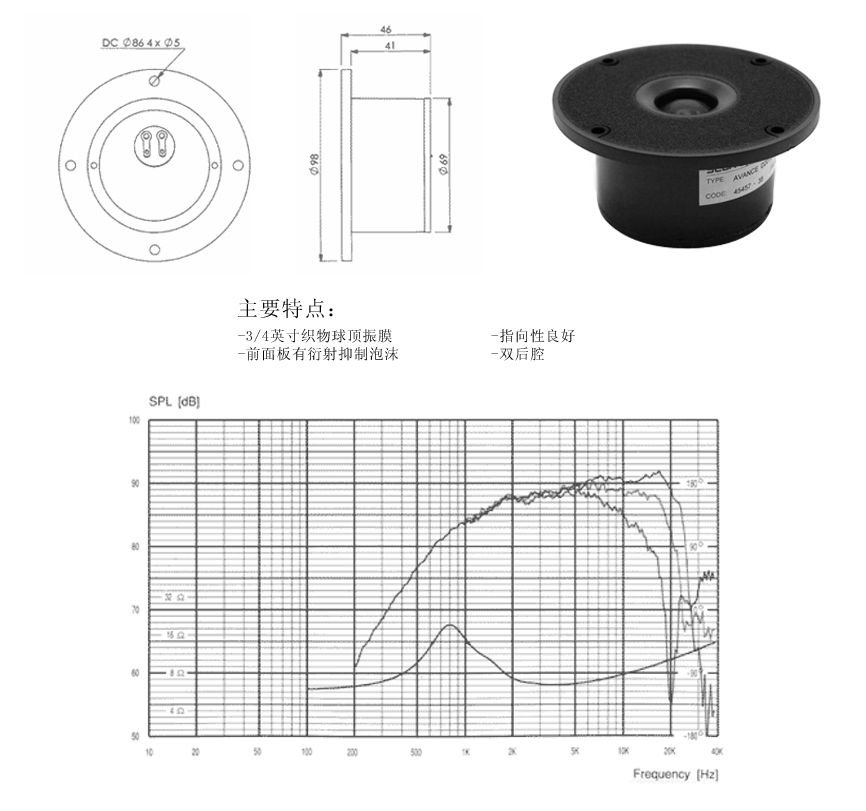

The tweeter is ScanSpeak's current high-end dual-fold ring diaphragm super-dynamic unit. The sharp phase cone at the center of the silk diaphragm is conducive to improving the extension of UHF; the mid-bass unit is also ScanSpeak's high-end product. Made of organic polymers of high-strength materials such as magnesium and silicon, the voice coil is made of copper-clad aluminum wire, and the basin frame is also designed to prevent eddy current.



The treble is delicate and soft, and the transient response is excellent. The texture brought by the vocals and strings is very strong. The timbre orientation of the mid-range part is thick and mellow. It is excellent in expressing classical music when playing classical music. It is magnificent and free to send and receive; the sound of woodwind instruments is restored to a strong sense of reality, and the tone of the string group is also very good. , That is a rare, very natural balance performance.

Frequency range                                     50Hz~20KHz

Rated impedance                                    4Ω

Sensitivity                                                85dB

Recommended matching power             20W~80W

Tweeter                                                   1x1"Scanspeak

Woofer                                                    1x6.5" Scanspeak

Product net weight                                  12Kg/pc

Product size                                            190x393x356mm

Terminal block                                         Bi-wiring
