Embedded IW series
location:Home >Product List >Embedded sound >Embedded IW series >IW-316
characteristic
specifications
pictures
explain
video

Features:


1. Ultra-thin closed box.


2. Double professional cinema-level speaker units.


3. The double horn sound wave diffusion design makes the dynamic more broad.


4. Crown's original high-power belt-type double tweeter, the high frequency is more transparent and bright.


5. Crown's original double bullet midrange unit, the sound image positioning is more accurate.


6. Crown's original damping coating double bass unit, the low frequency is more powerful and shocking.


7. The installation method of hanging on the wall or hidden in the wall.

Frequency range (±3dB)                   50Hz--25KHz

Rated impedance                              8Ω

Sensitivity (@2.83V/1m)                   98dB / Peak:115dB

Recommended matching power       60W~200W

Recommended power                       80W

Rated power (continuous/peak)        60W/300W

Tweeter                                             2×1" copper tape tweeter

Alto unit                                             2×2.5" cloth dome alto

Woofer                                              2×6.5" black paper cone

Product net weight                            12.6kg/piece

Product gross weight                        13.5kg/box

Product size (WxDxH)                       500x165x480 mm

Cut-out size (WxDxH)                       520x175x500 mm

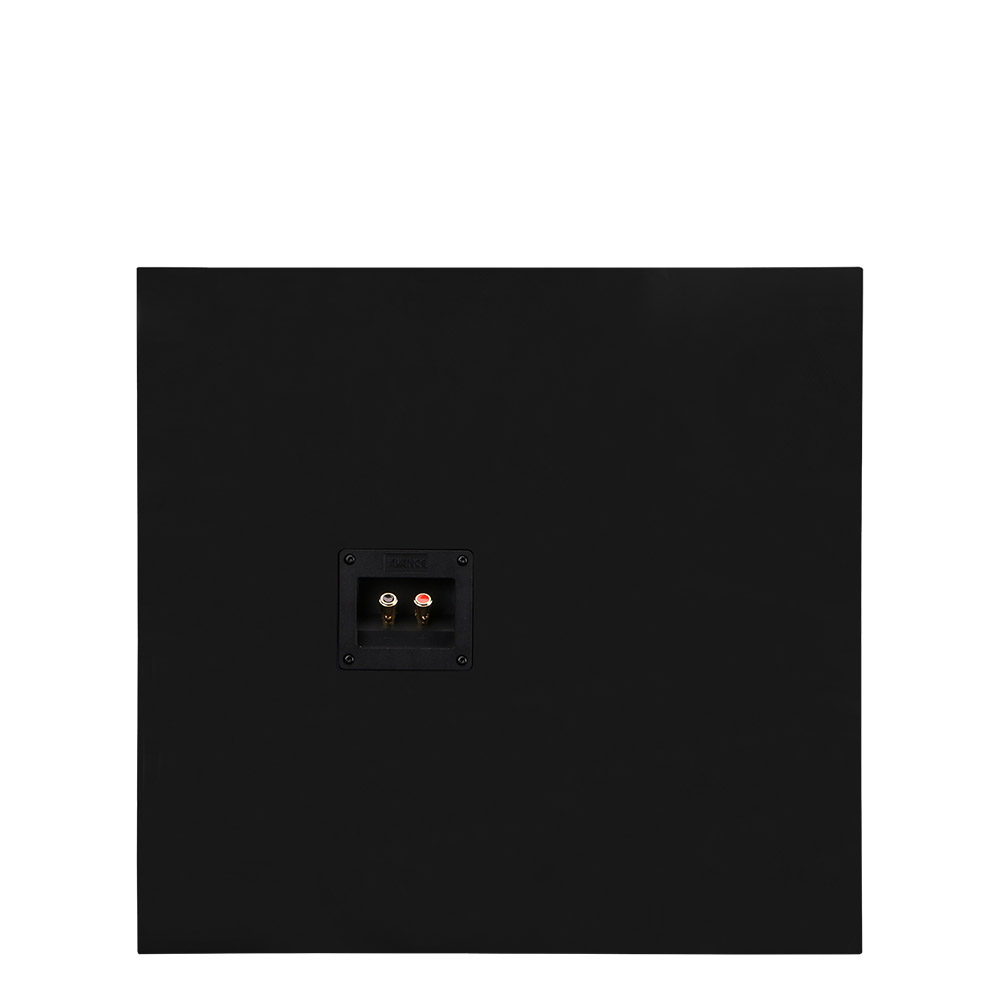

Wiring terminal                                  Single wire partial tone

Place of production                           China
