Beta-760
Features
Specification
Description

Features:

1. Double box structure, the inner layer is made of thickened super-hard MDF board

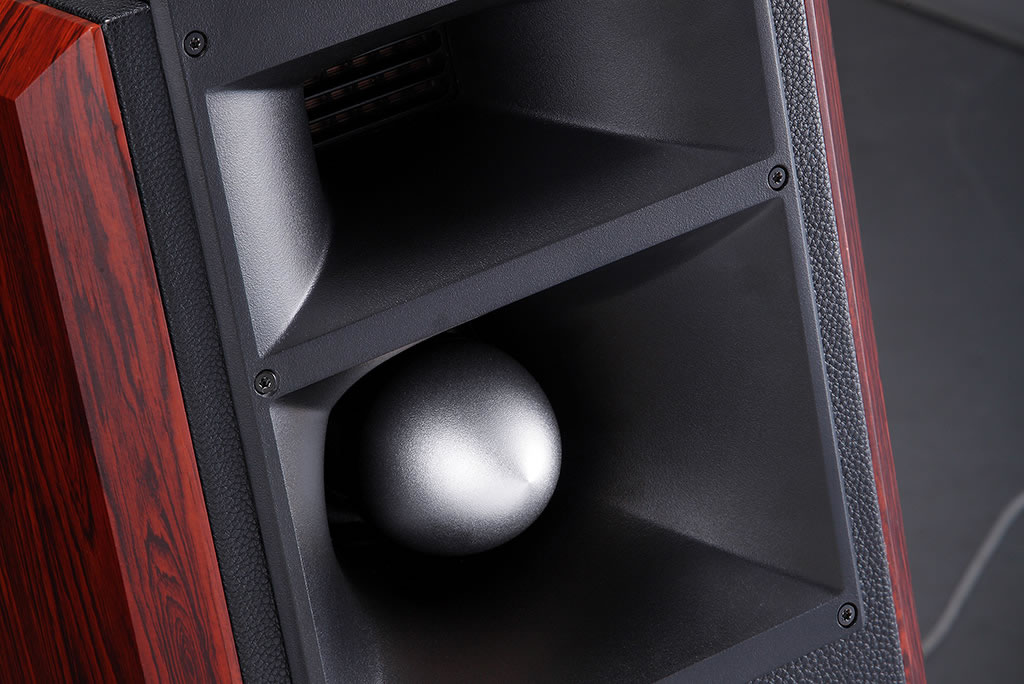

2. The flat vibrating membrane of the copper belt tweeter is made of highly heat-resistant materials, the action of the vibrating membrane is uniform and fast, and the sound is transparent and natural

3. The cone of the midrange unit achieves the best rigidity/mass ratio. A newly designed special phase plug is installed in the center of the cone, which eliminates sound compression and makes the sound more penetrating

4. The middle and high frequency are all horn-type design, the sound wave diffusion ability is stronger

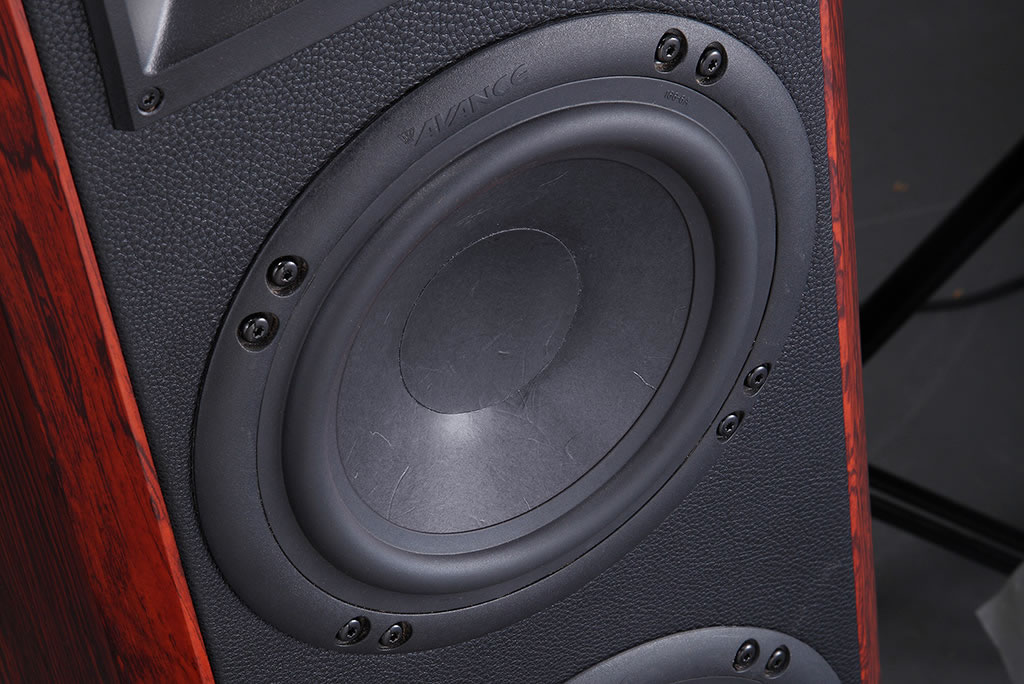

5. Specially-made woofer, using a highly rigid air-dried paper cone, coated with a layer of anti-harmonic damping material, super long stroke voice coil has double stroke and better than other same diameter cone Dynamic gain















Product parameters:

Frequency response range 40Hz~20KHz

Rated impedance 4Ω

Sensitivity 89dB

Recommended matching power 50W~200W

Tweeter

Midrange unit   1x2.5" cloth dome midrange

Woofer 2x6.5" black paper cone

Net weight 26.6Kg

Product size 264x385x1197mm

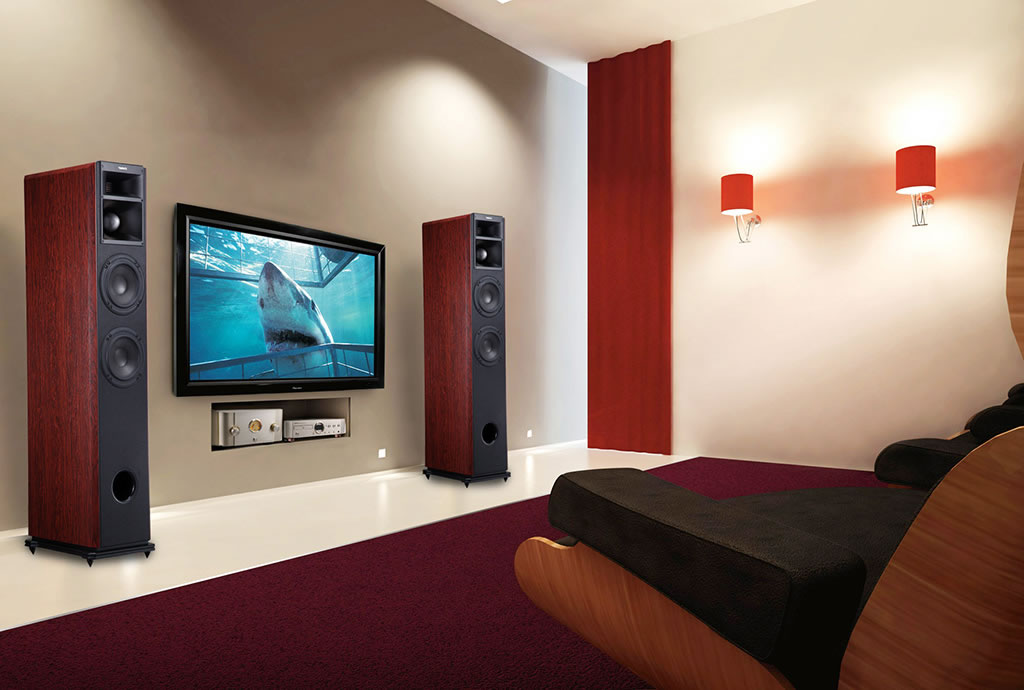

Home renderings:

Theater renderings:
