Stage speaker series
location:Home >Product List >Professional stage >Stage speaker series >K-412
特性
规格特性
产品图片
产品说明

◆Professional 12-inch speaker, can be used in conference rooms, multi-function halls, churches, auxiliary sound reinforcement, small and medium-sized outdoor commercial performances and other occasions;

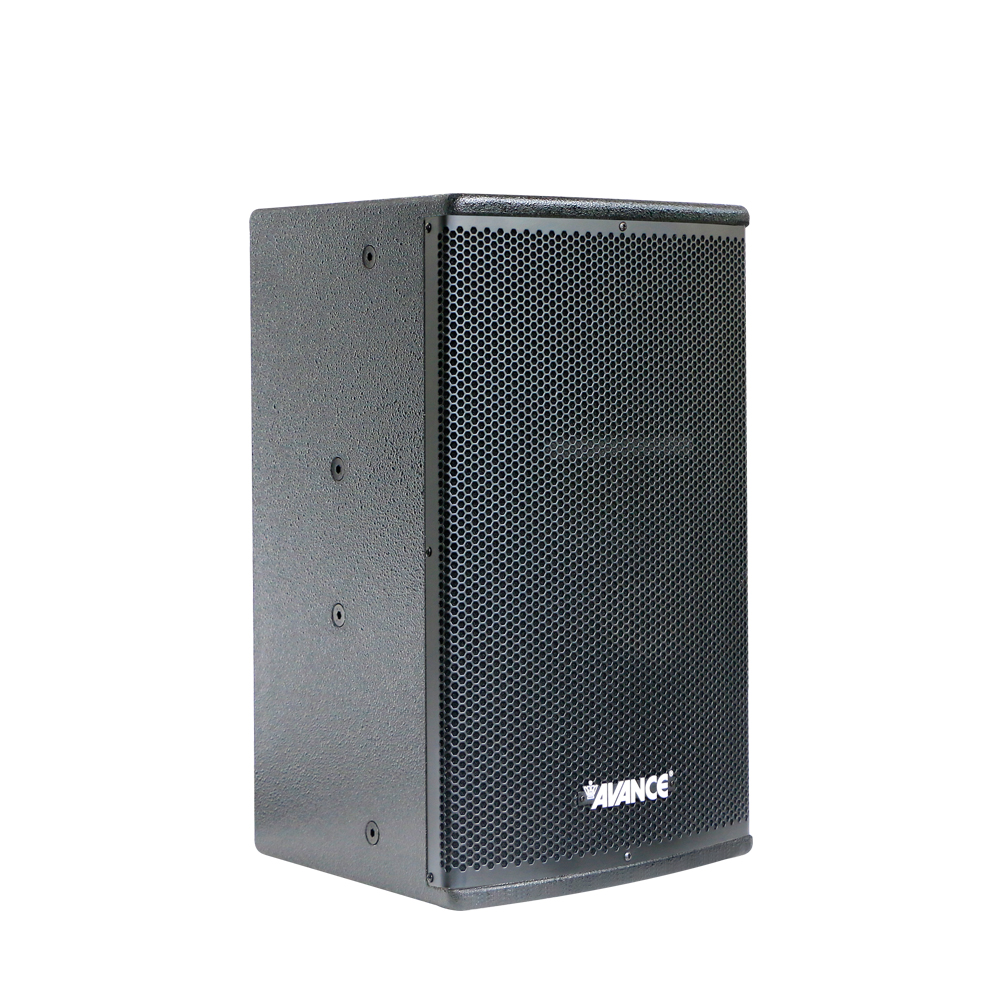

◆The multi-purpose four-sided trapezoidal box design K-412 speaker has a clean and simple appearance. The groove design of the steel mesh highlights the high-end atmosphere of this product. The design is stable and elegant. Can be used for main sound reinforcement or auxiliary sound supplement, two-way frequency design, high cost performance;

◆The mid-to-high frequency part adopts straight-through crossover design; presents the most original mid-to-high sound quality. In outdoor performances and language sound reinforcement occasions, the high-frequency is delicate and penetrating, and the mid-range is clear and clean;

◆ 5 hanging installation points, can be hung horizontally or vertically; with bracket jack at the bottom;

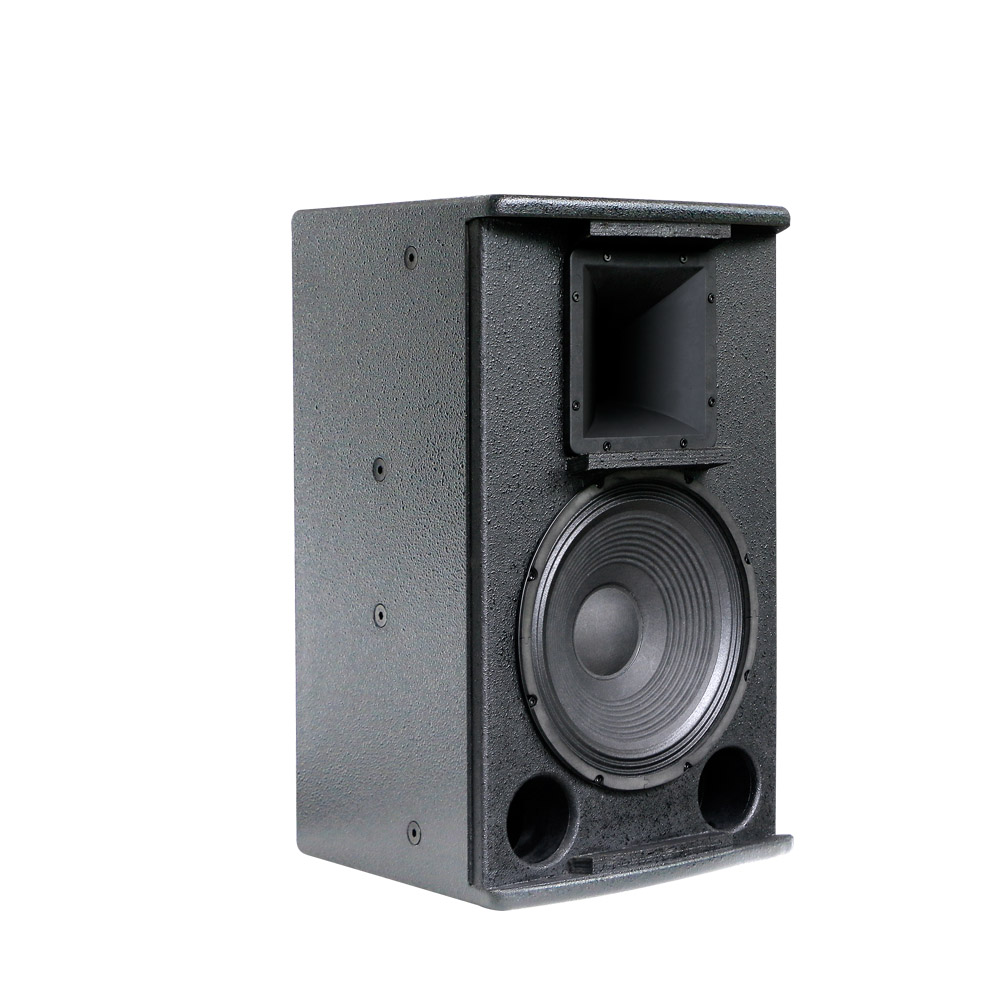

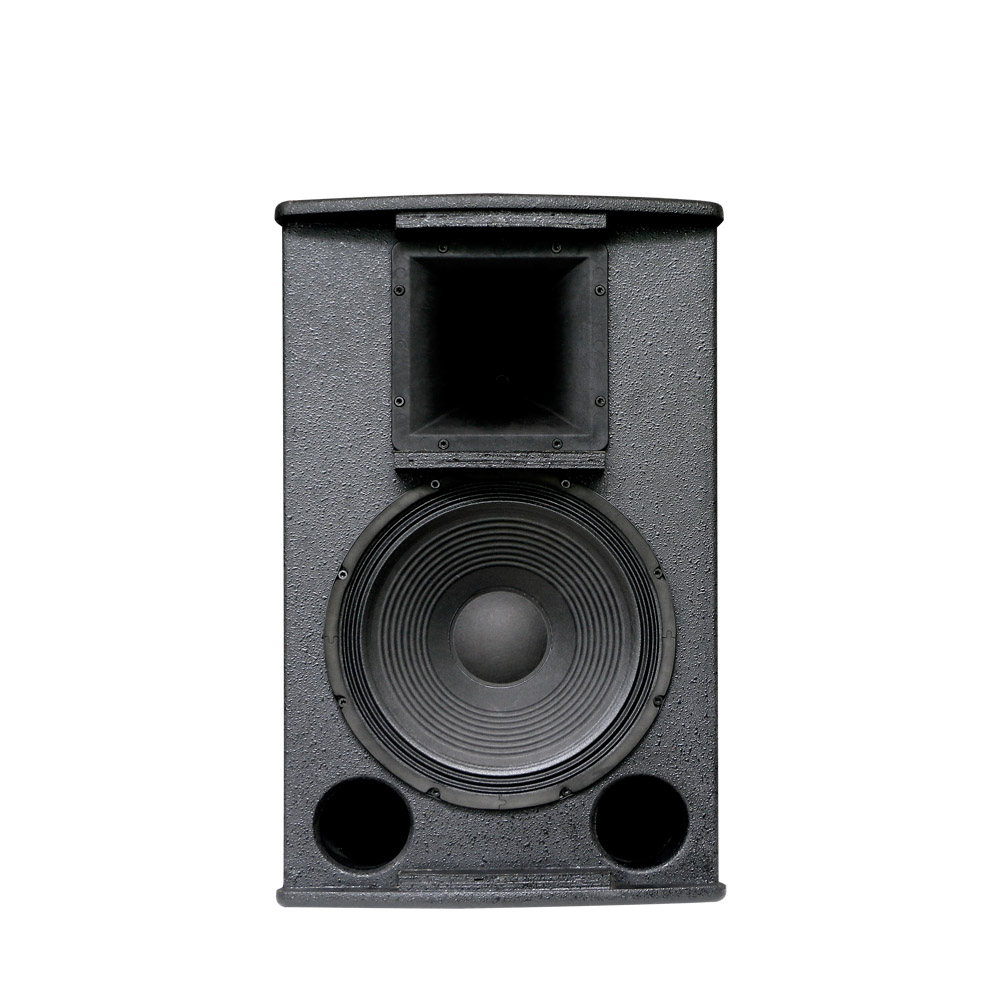

◆Full-range speaker consisting of 12-inch low-frequency drive unit and 1.4-inch compression drive tweeter

Product model: K-412

System type: 2-way 1x12"

Unit composition: treble: 1*1 inch throat plug/1*1.4 inch voice coil;

Bass: 12 inch woofer 1* 2 inch voice coil;

Frequency response (±3dB): 50Hz-18KHz;

Coverage angle: 90 degrees (H) × 50 degrees (V);

Sensitivity (1W/1m): 97dB/1W 1 meter;

Continuous sound pressure level: 121dB;

Peak sound pressure level: 127dB;

Standard impedance: 8Ω;

Input power: 250W (rated)/500W (peak);

Box plate: 15mm MDF;

Installation method: 5 M8 lifting screw holes; 1 bottom support hole;

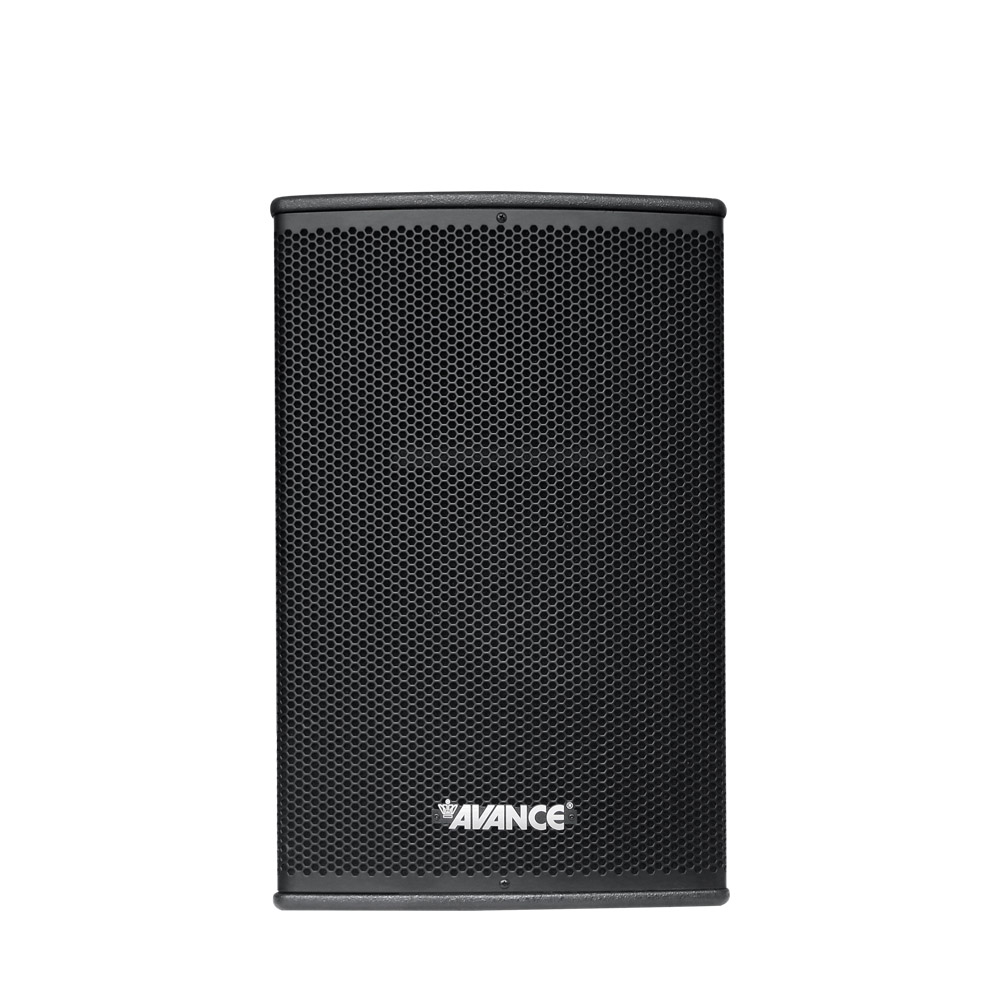

Mesh: Hexagonal mesh made of molded steel;

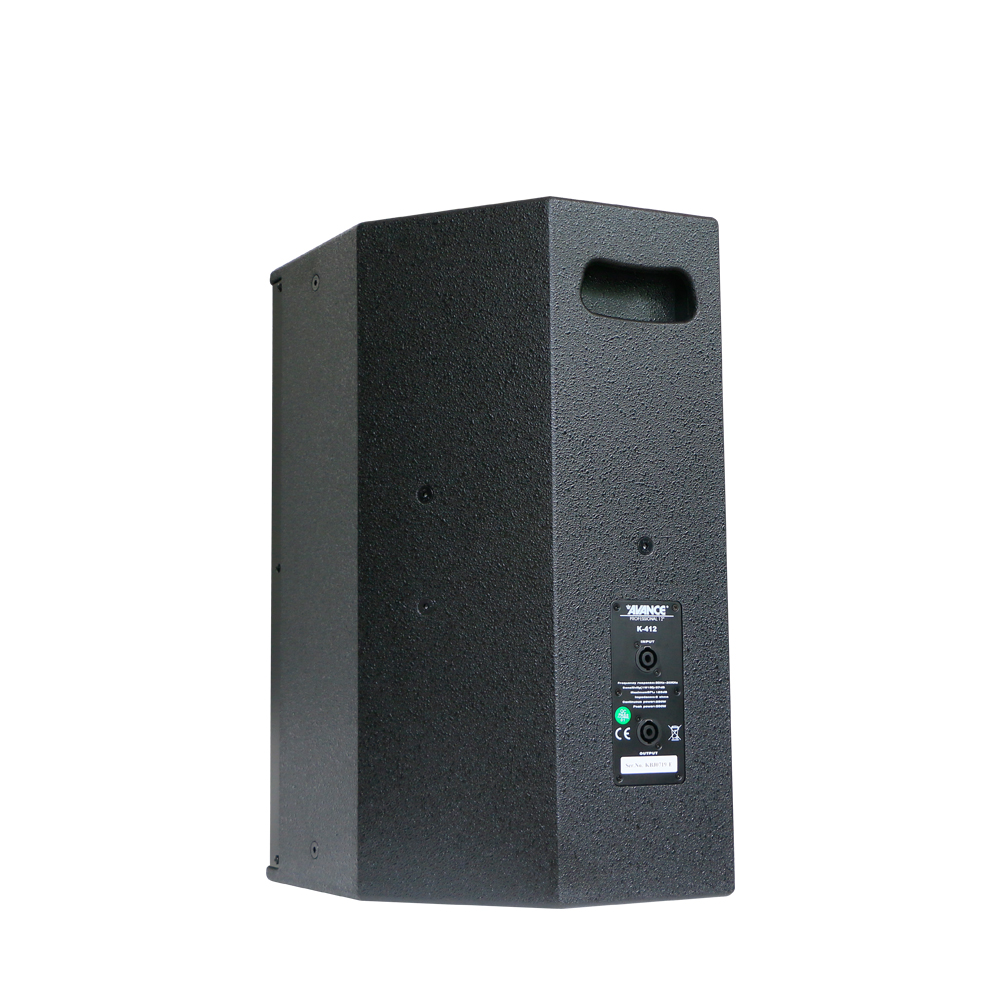

Input connector: 2 NL4 sockets;

Connection: 1+, 1- or 2+, 2-;

Product size (W×D×H): 394.8×378×620mm;

Net weight: 16Kg;
