Embedded IW series

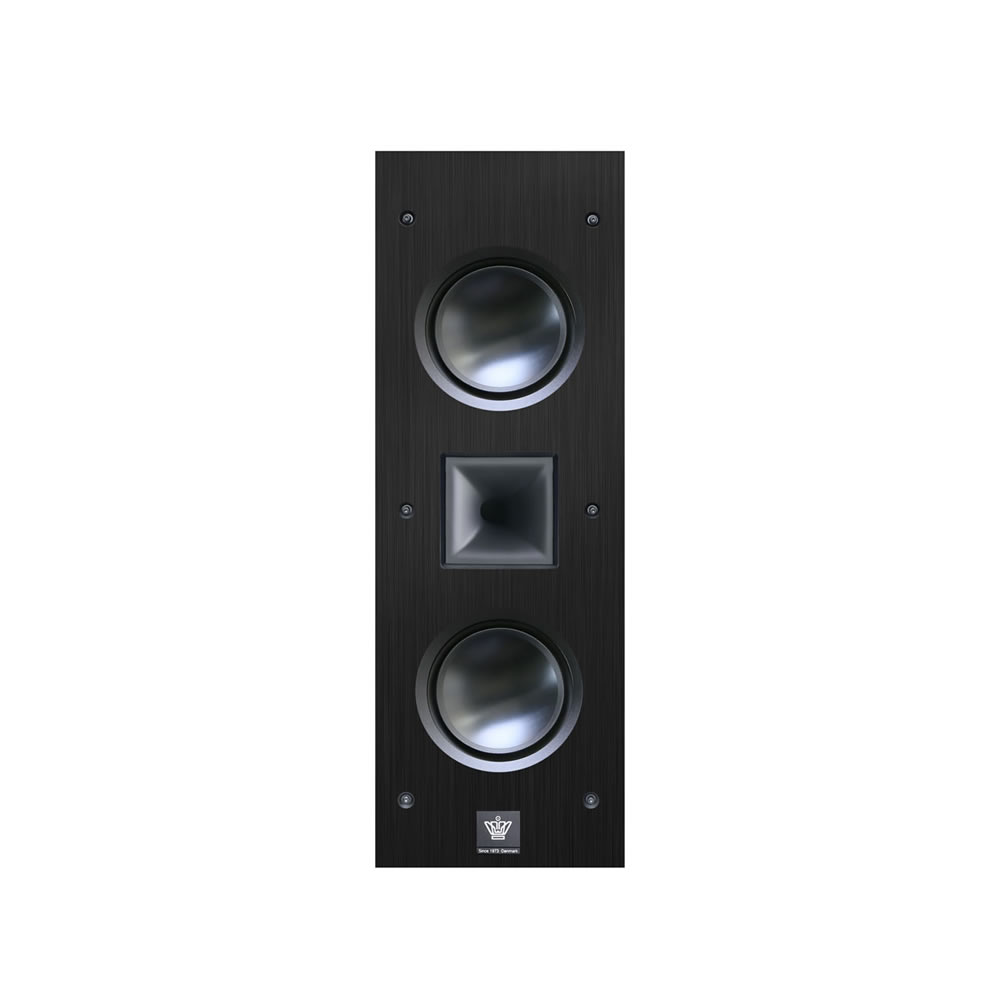

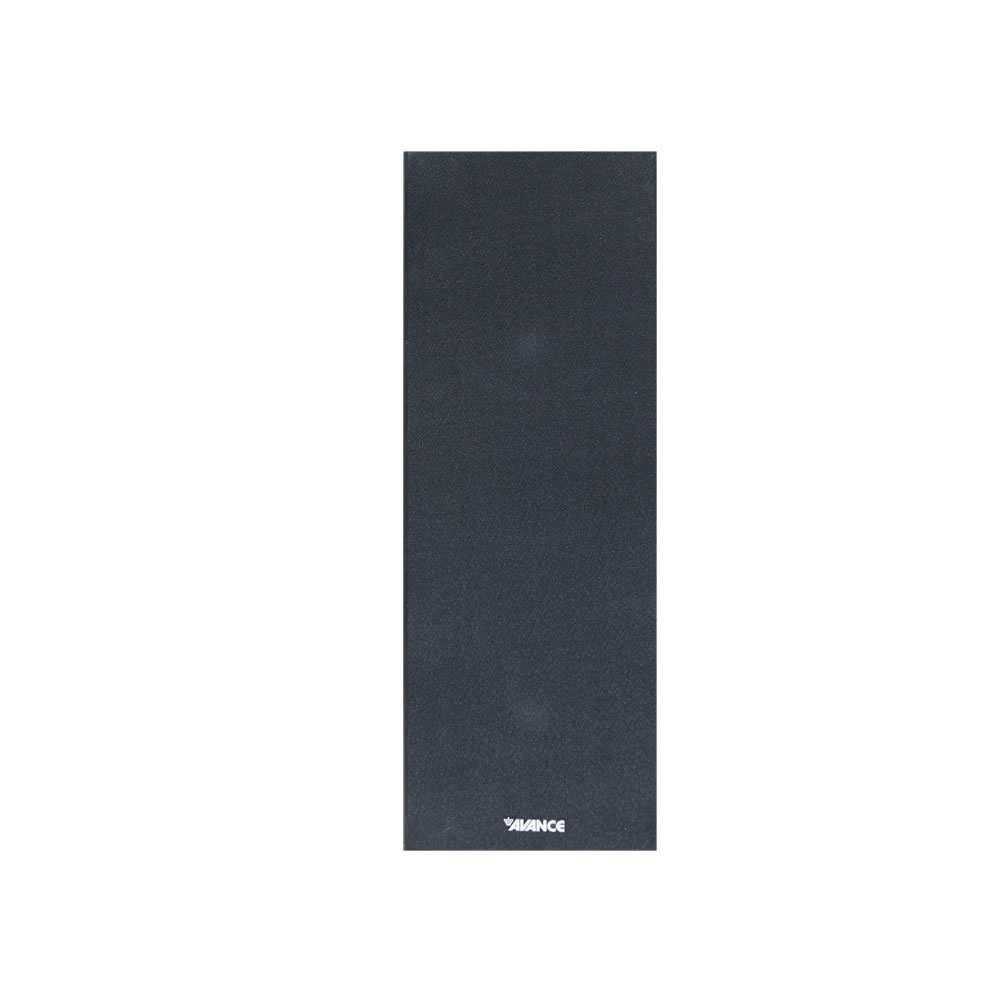

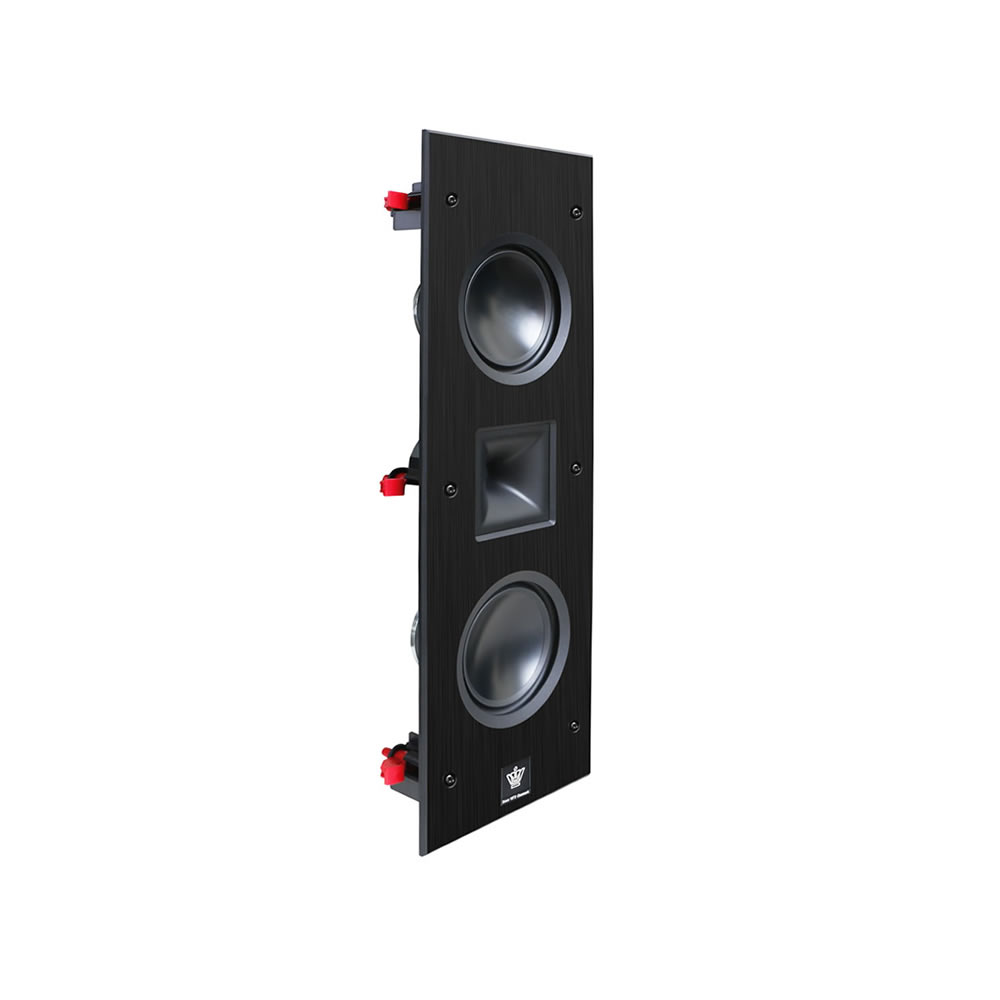

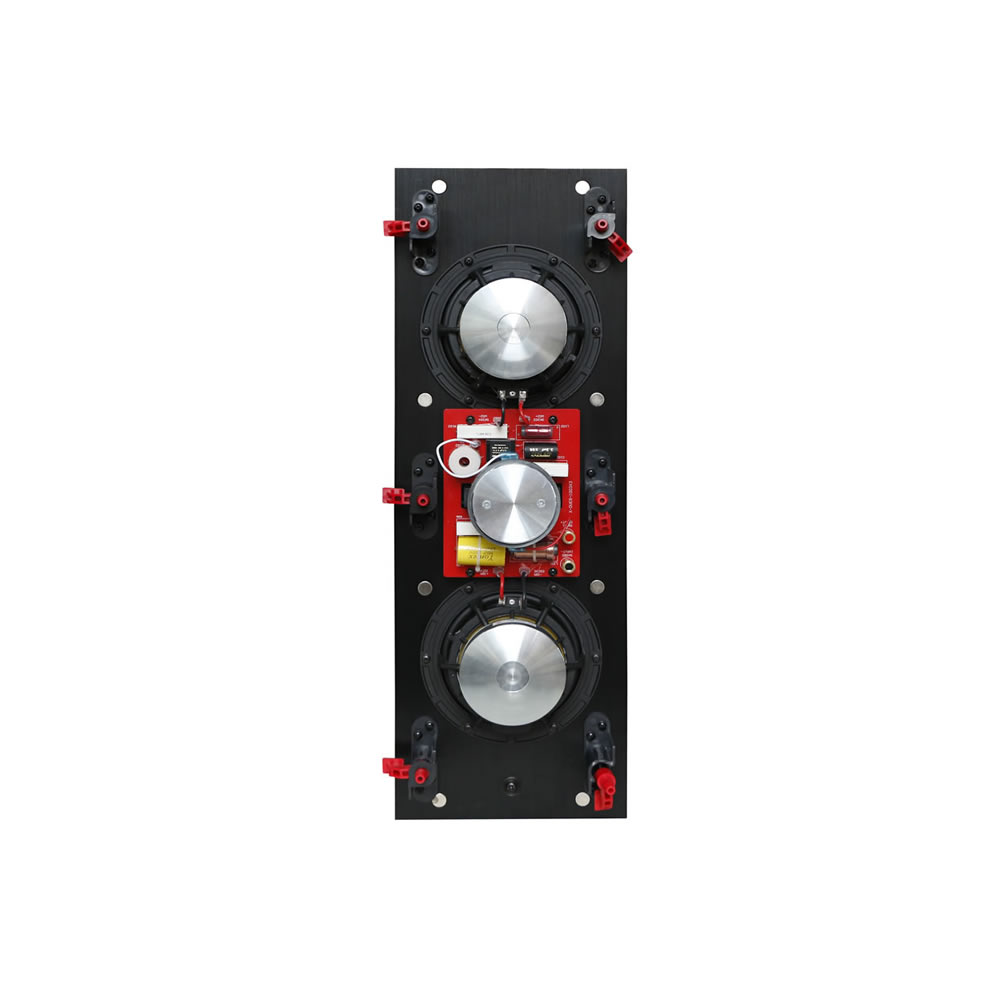

location:Home >Product List >Embedded sound >Embedded IW series >IW-716
characteristic
specifications
pictures
explain
video

Frequency range (±3dB)                  50Hz-20KHz

Rated impedance                             4Ω

Sensitivity (@2.83V/1m)                  93dB / Peak value: 109dB

Recommended matching power      80W~160W

Recommended power                      100W

Rated power (continuous/peak)       80W/200W

Tweeter                                            1 inch compressed horn tweeter

Woofer                                              Dual 6.5-inch black aluminum alloy cones, rubber edges

Product net weight                            8.5kg/piece

Product size (WxDxH)                      680x230x120 mm

Opening size (WxDxH)                     645x200 mm, the depth from the wall to the inside is ≥110 mm

Wiring terminal                                  Single wire partial tone

Place of production                           China
