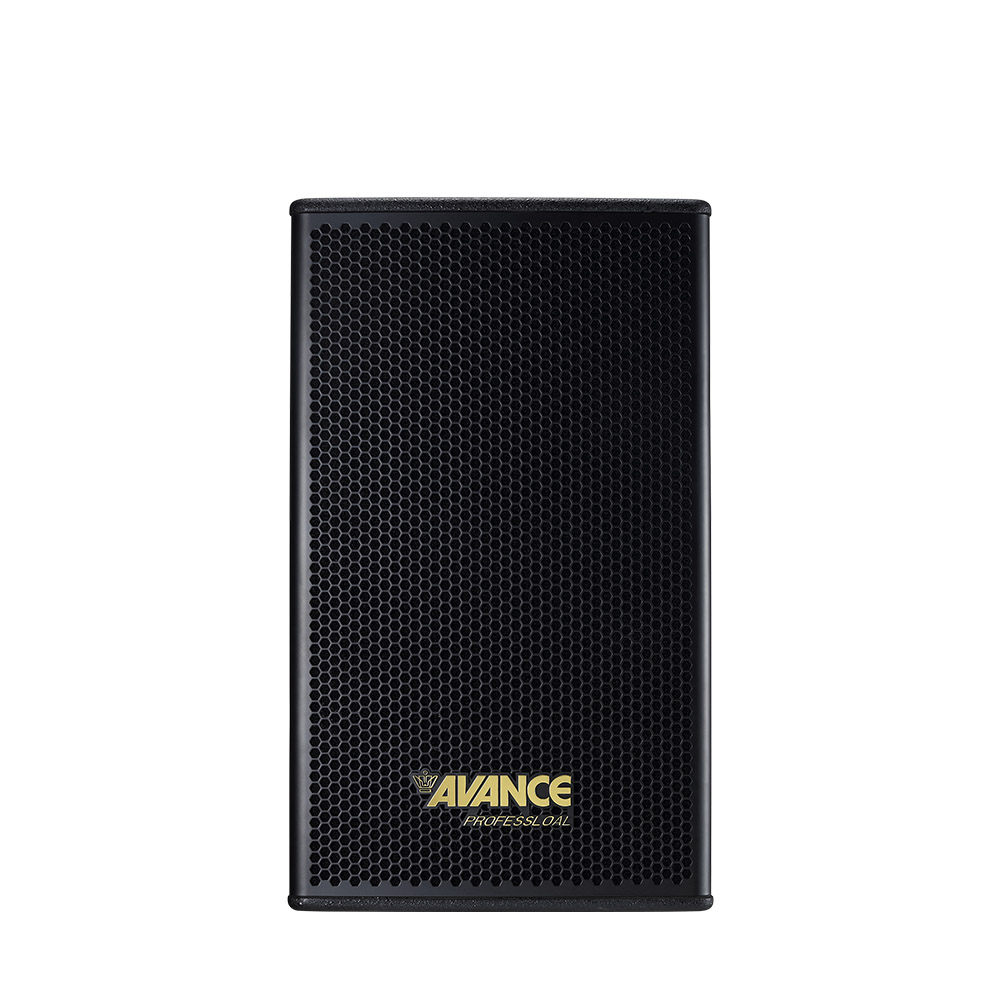

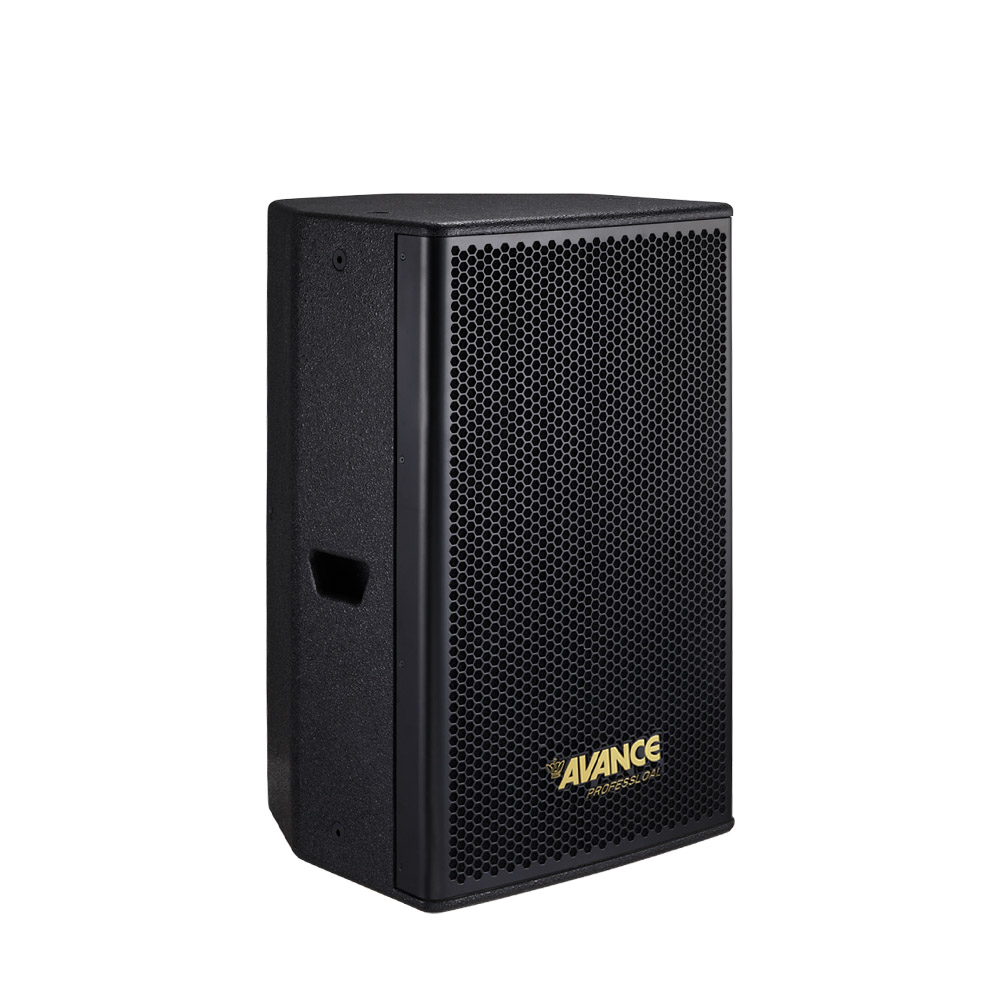

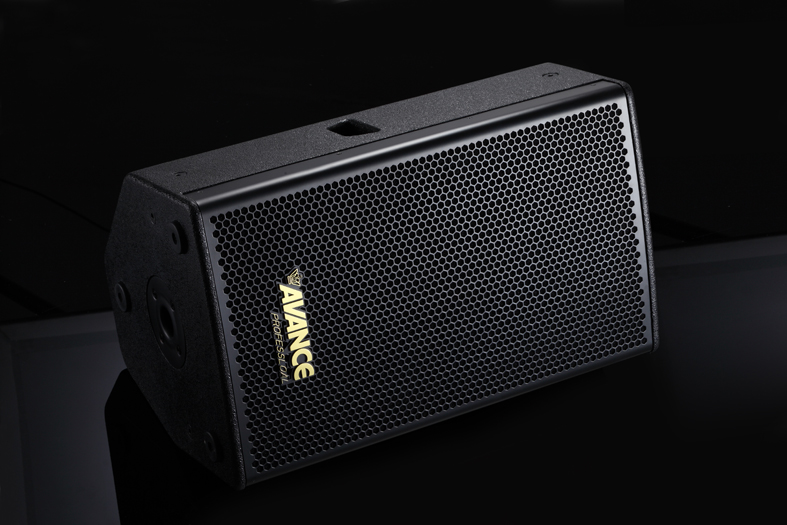

The K series professional stage box adopts a sturdy, non-resonant box body. The intention of this design is to reduce the vibration caused by the high-level output, thereby ensuring less distortion and higher sound quality. The field-tested cabinet is equipped with a heavy steel mesh cover and an ergonomic handle, which improves durability and portability.

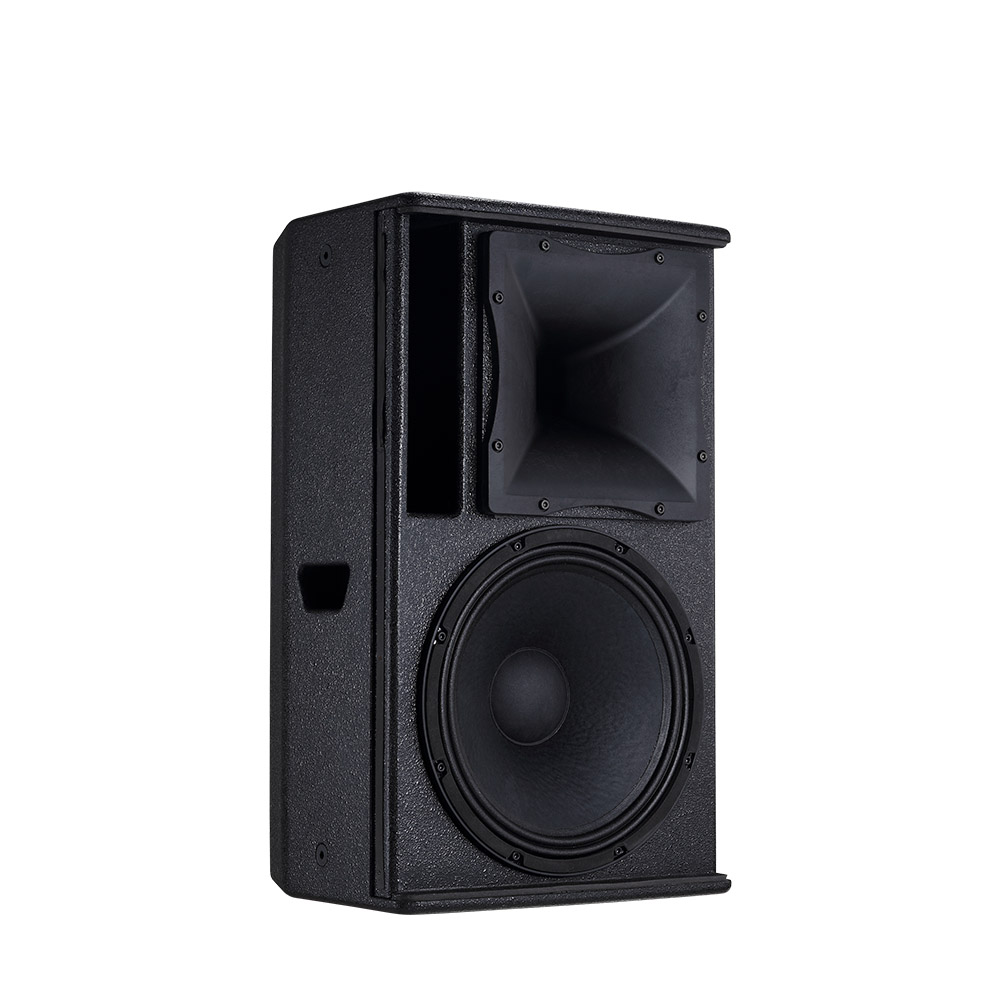

Units have undergone rigorous screening and comprehensive custom design in order to give full play to performance. In order to fully realize the performance potential, the detailed characteristics and operation modes of various units are comprehensively analyzed and evaluated through complex computer simulations. The high-power woofer has a low distortion rate and high accuracy, which can produce deep low frequencies, and the precision compressed directional horn tweeter can restore accurate mid-to-high frequencies. The upper limit of frequency response can reach 20kHz or higher.
Frequency response range 55Hz～20KHz
Rated impedance 6Ω
Rated power 300W～600W
Tweeter 1x44 core titanium membrane tweeter
Low/midrange unit 1x12"W cloth edge paper cone
Net weight 23.5Kg/piece
Gross weight 27.5Kg/piece
Product size 370x365x620mm
Packing size 472x467x708mm
Country of origin China
