SCAN-SPEAK high-end fever unit configuration


The crossover adopts the unique joint design of the AVANCE

location:Home >Product List >Hi-Fi sound >MAGNUM Series >MAGNUM 13

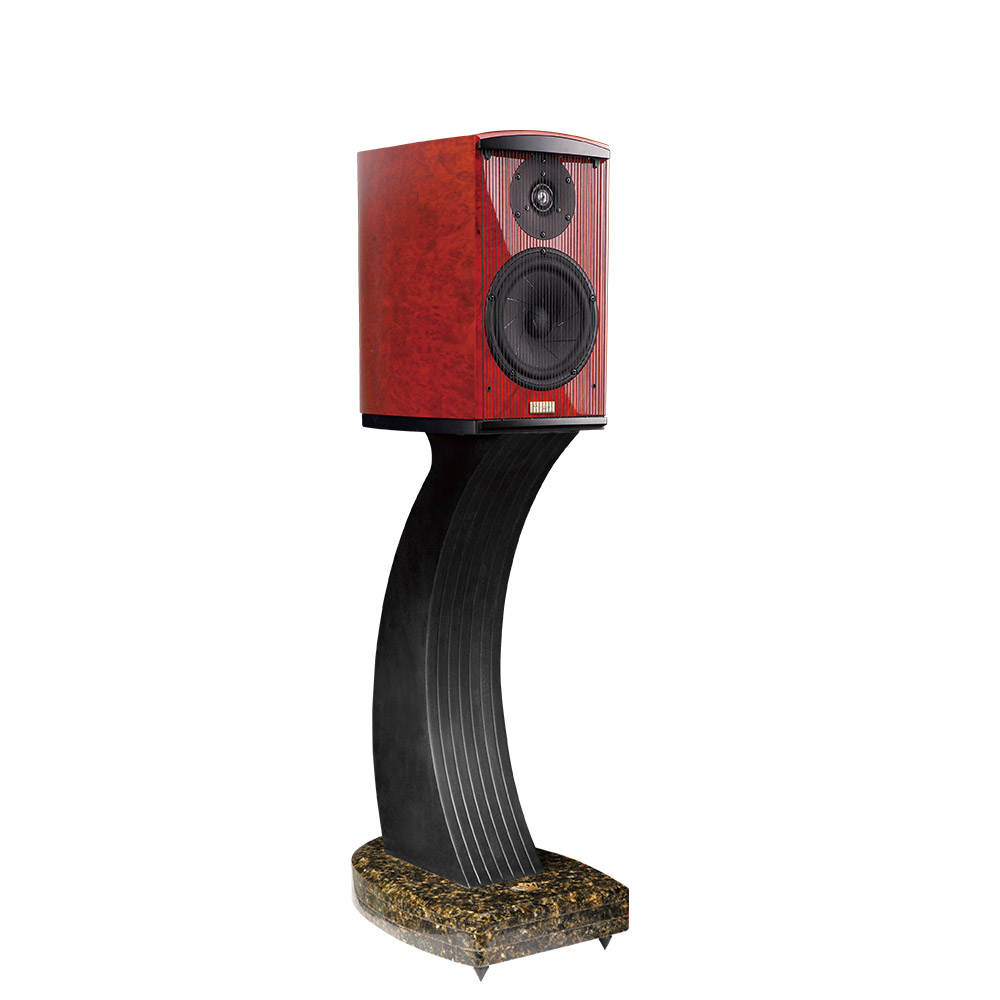

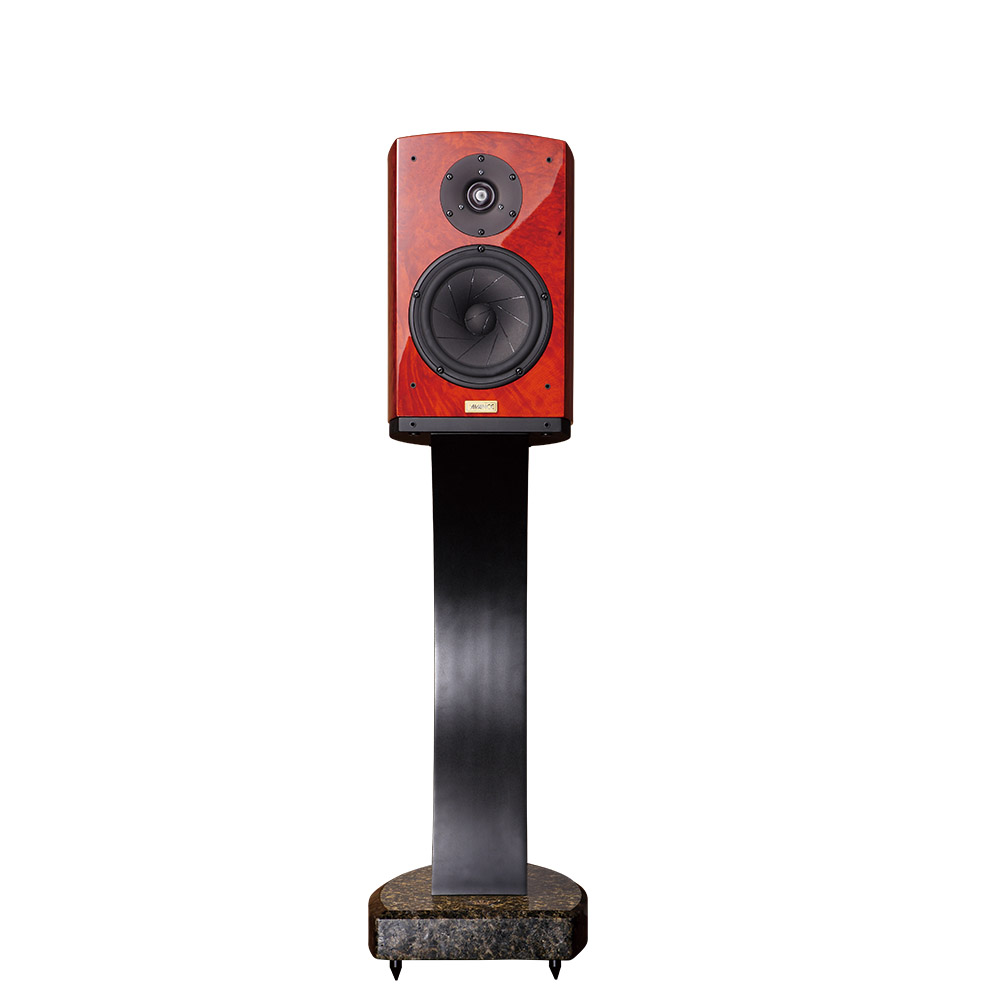

Magnum 13 is a bookshelf box made of noble piano paint. It is elegant and generous. Compared with other Hi-Fi boxes, Magnum 13 is not inferior! In appearance, the Magnum 13 cabinet is treated with a piano baking lacquer with complicated procedures. The ex

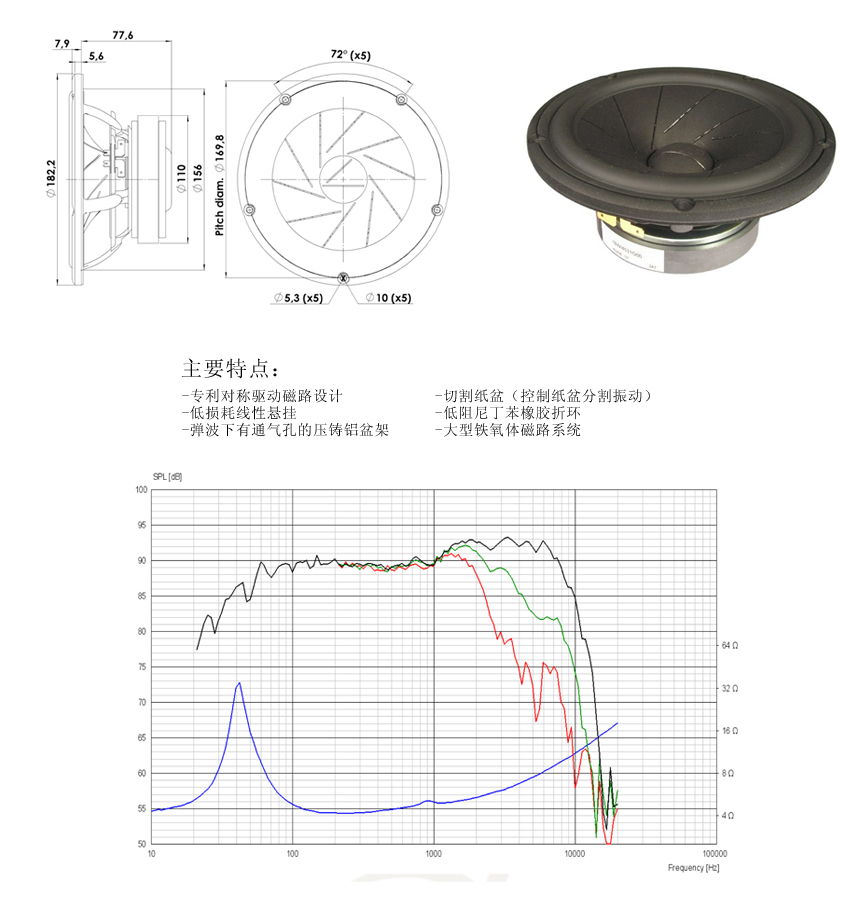

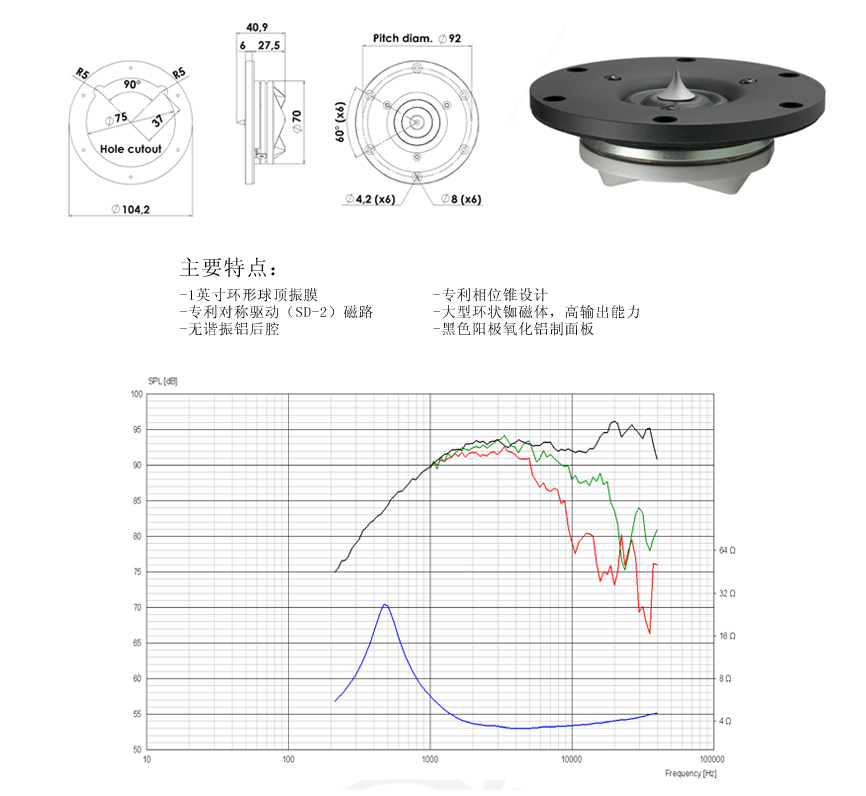

The tweeter is ScanSpeak's current high-end dual-fold ring diaphragm ultra-dynamic unit. The sharp phase cone located in the center of the silk diaphragm is conducive to improving the extension of UHF; the mid-bass unit is also ScanSpeak's high-end product. Made of organic polymers containing high-strength materials such as magnesium and silicon, the voice coil is made of copper-clad aluminum wire, and the basin frame is also designed to prevent eddy currents. The sound performance is very comprehensive, the treble fiber is soft, and the transient response is excellent. The texture brought by the restoration of vocals and strings is quite strong. The timbre orientation of the mid-range part is thick and mellow. It is excellent in expressing classical music when playing classical music. It is magnificent and free to send and receive; the sound of woodwind instruments is restored to a strong sense of reality, and the tone of the string group is also very good. , That is a rare, very natural balance performance.

Product parameters:

Frequency range 45Hz~40KHz

Rated impedance 4Ω

Sensitivity 84dB

Recommended matching power 30W~80W

Tweeter 1x1"Scanspeak

Woofer 1x6.5"Scanspeak

Product Net Weight 11.2Kg/pc

Product size 250x378x360mm

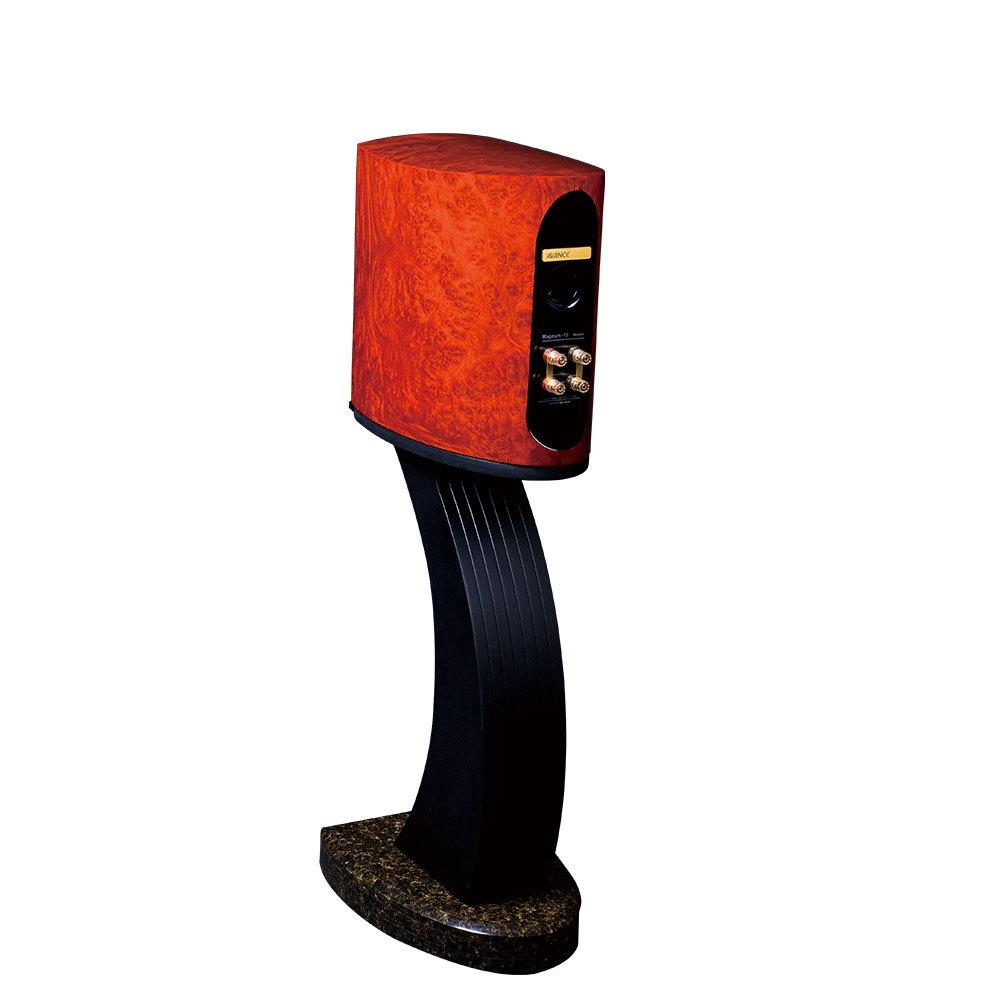

Terminal block

Home renderings:
