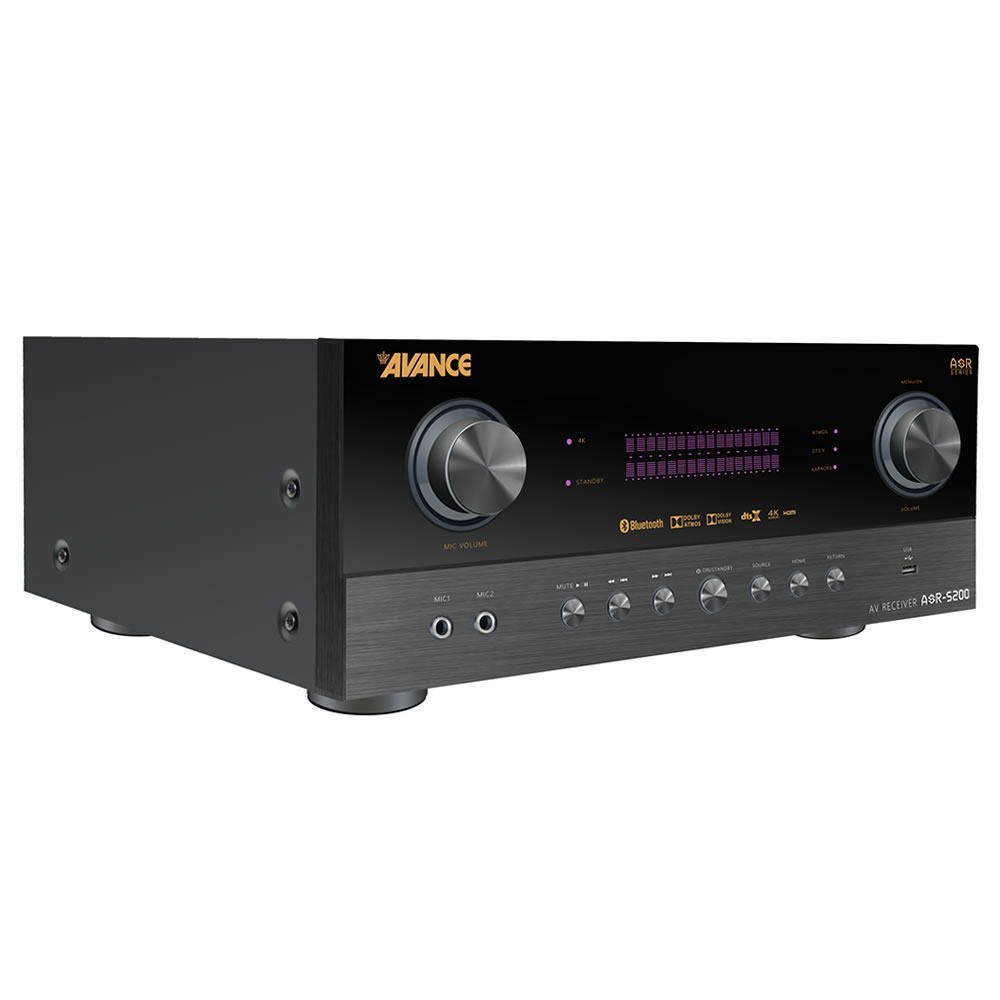

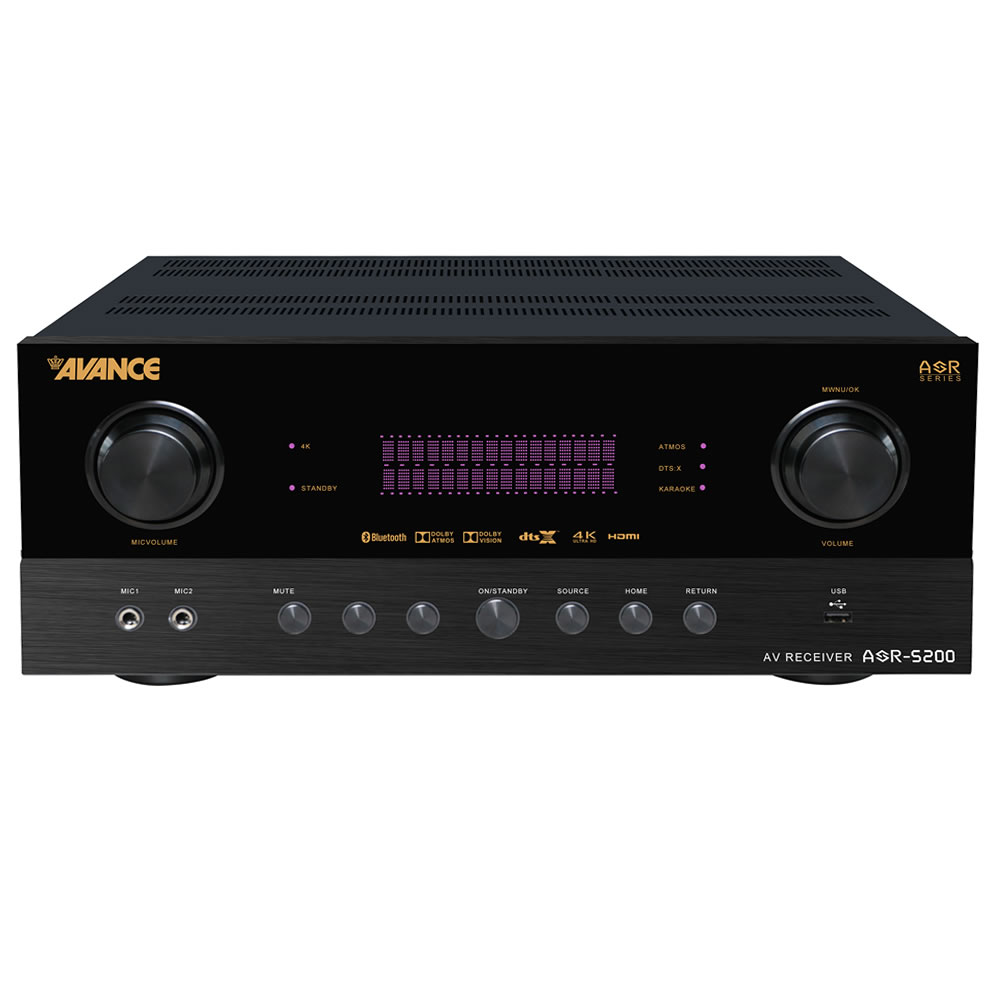

location:Home >Product List >Home Theatre >AV amplifier >ASR-5200

Features overview:

1. Support Dolby Atmos,Dolby True-HD and backward compatible with all Dolby audio encoding files.

2. Support DTS:X, DTS-Master and backward compatible with all DTS audio encoding files.

3. Support HDMI2.0, support HDCP2.2.

4. Support 4K/60Hz, RGB4:4:4, 18GHz full bandwidth HD video signal.

5. Support Dolby Vision and HDR10 high-definition video signals.

6. Up to 12-channel panoramic sound 7.1.4 audio decoding line output.

7. Built-in 5.1.2 panoramic sound karaoke system, powerful DSP digital reverberation effect and nine-level anti-howling frequency shift processing technology, a variety of vocal style options.

8. Automatic test and compensation of room EQ speaker distance, delay, sound pressure, one-button operation, automatic correction, and support for manual adjustment by users.

9. Built-in Bluetooth digital audio receiver.

10. Built-in high-quality music player, support TF card and U disk audio file playback, support FLAC, APE, WAV, MP3 and other lossless and lossy compressed audio formats, support multi-layer folder management.

11. All Chinese superimposed OSD screen display menu.

12. Support local music information can be read and displayed simultaneously on mobile phones and TVs.

13. Support more than 10 speaker configurations ranging from 2.0 channels to 7.1.4 channels.

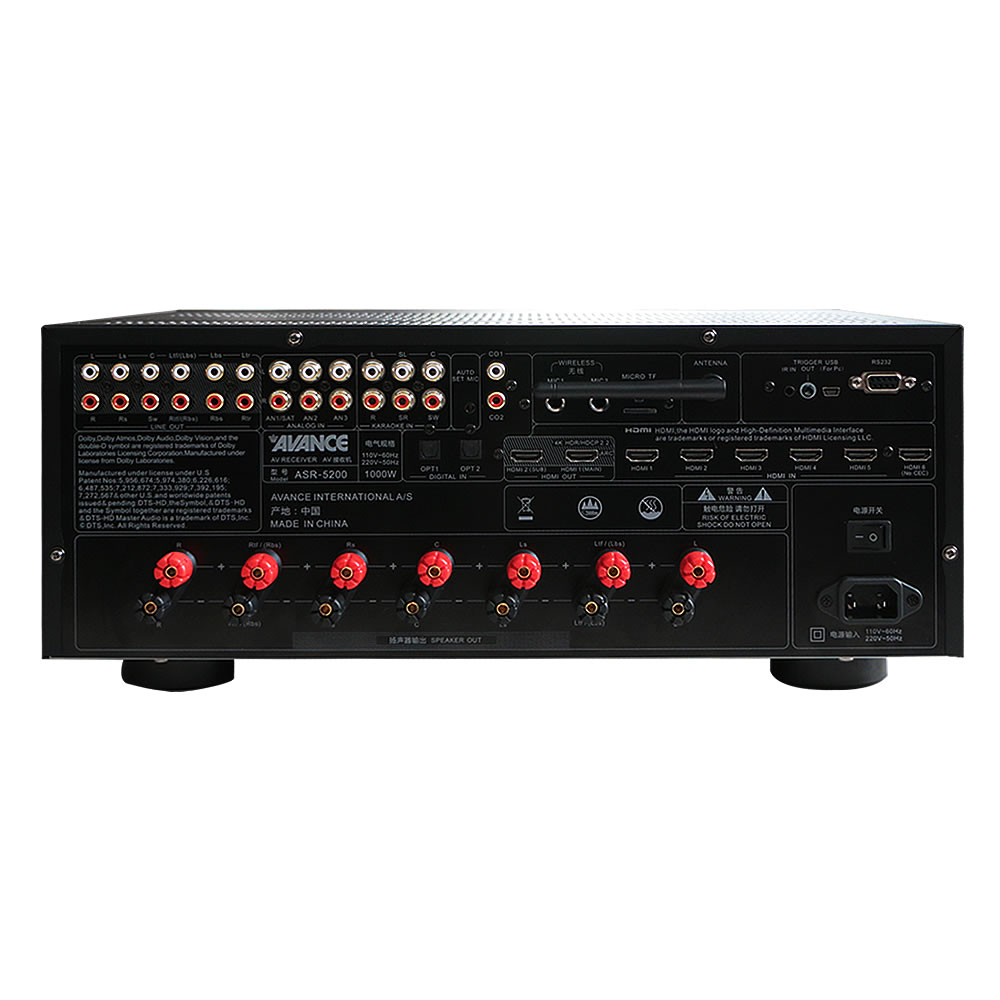

14. Support HDMI 6 input and 2 output, 2 groups of coaxial 2 groups of optical digital audio output, 3 groups of analog audio input.

15. Support 5.1 channel external mixing input, external reverb can be connected.

16. Built-in 7x150W (8Q, RMS) high-power class H HI-FI power amplifier can directly drive speakers with 5.1.2 channel configuration.

17. Support RS232 centralized controller.

18. Support HDMIARC audio return, support CEC control.

19. Support lip synchronization adjustment up to 1000ms duration.

20. Up to 5~11 segments of parameter EQ per channel.

21. Support audio and video group output.

22. Select the latest generation of dual-core DSP processors from ADI in the United States.

23. Support the function of setting and saving parameters independently according to the input source. Input source independent EQ selection, independent karaoke control, independent volume adjustment memory.

24. Support the power-on setting and maximum volume limit of microphone volume and music volume.

Rated impedance: 8 Ω Rated output power: 230W RMS / 4 Ω( Thd = 1%, mono, 1kHz)

150W Rms/8 Ω( Thd = 1%, mono, 1kHz)

Distortion: ≤ 0.05%

Frequency range: 20Hz-20KHz

Gain: ≥ 40dB

SNR: ≥ 95dB

Power consumption: ≤ 1000W

Power supply voltage: 110 V ~ 60 Hz, 220 V ~ 50 Hz

Net weight: 15.5kg/set

Gross weight: 17.6kg/case

Product size (WxDxH): 432x408x179mm (including terminal)
