CD-30

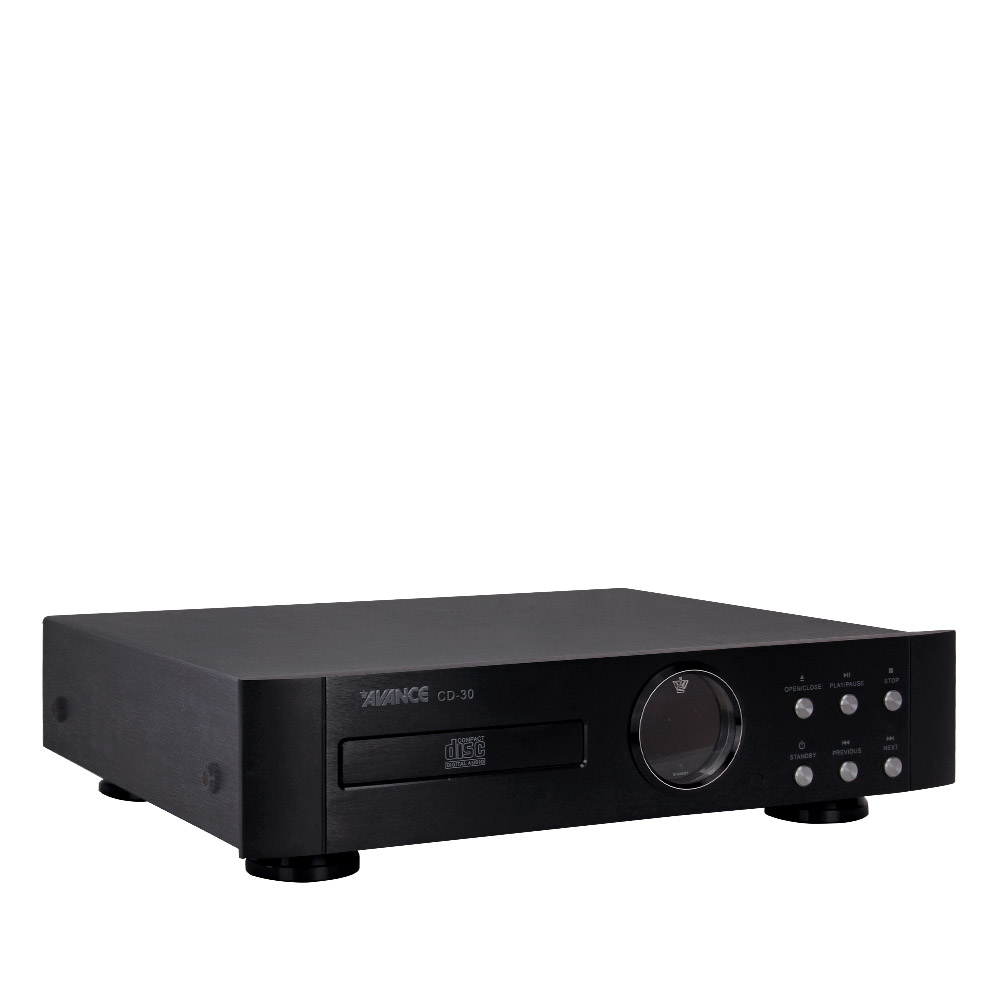

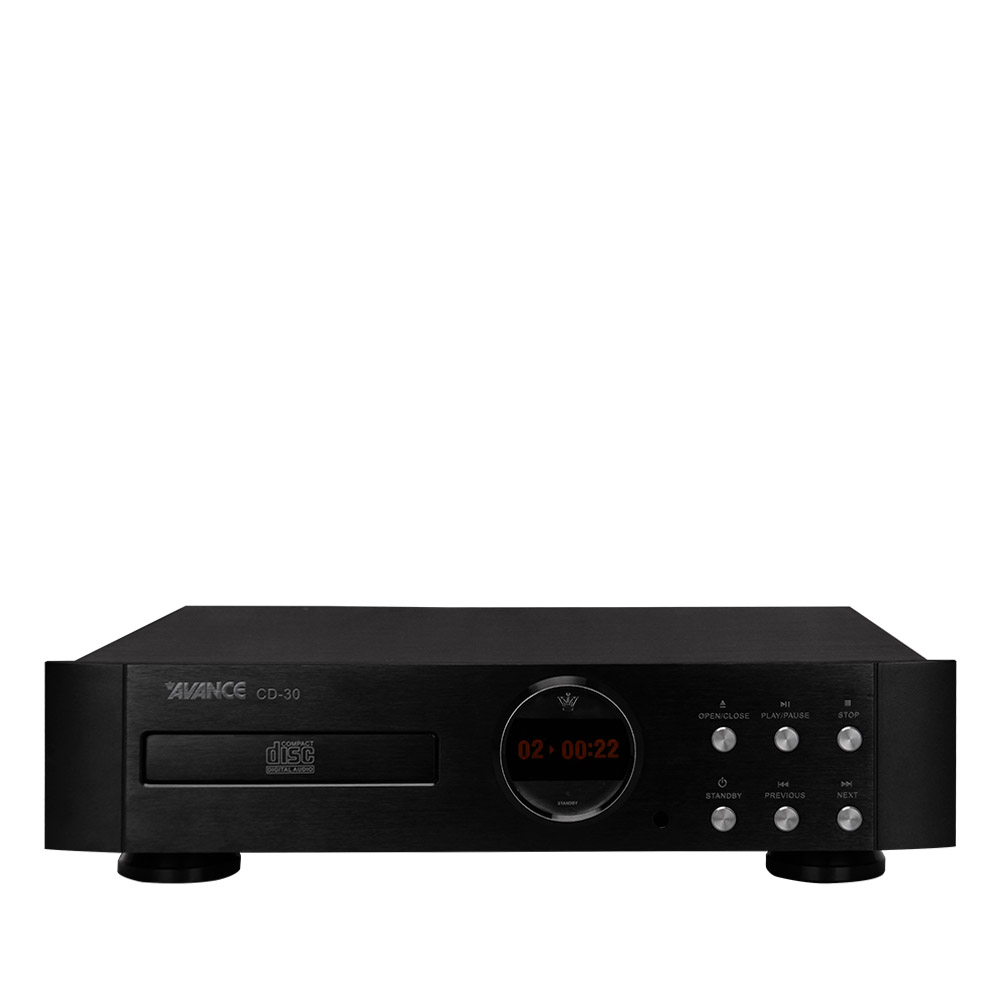

CD-30 player is a new entry-level product of AVANCE Audio. In the design and manufacture of the fuselage, it uses aluminum alloy to create a solid fuselage. The aluminum alloy panel is nearly 10 mm thick, with curved edges on both sides and sandblasted te
Features
Specification
Description

Features:

1. Heavy aluminum alloy body, the panel thickness is nearly 10 mm

2. Adopt arc-shaped edge trimming, treated with sandblasting texture and brushed grain

3. Adopt accurate PC disc reading system

4. Adopt CD special high-precision movement, good stability, strong reading ability

5. Support new specification reading decoder

6. High-standard digital audio signal

7. Support balanced RCA ultra-high output


















CD-30

Product parameters:

Output level 2.0V

Frequency response 5Hz-20KHz

Signal to noise ratio 110dB

Dynamic range 120dB

Channel separation 110dB

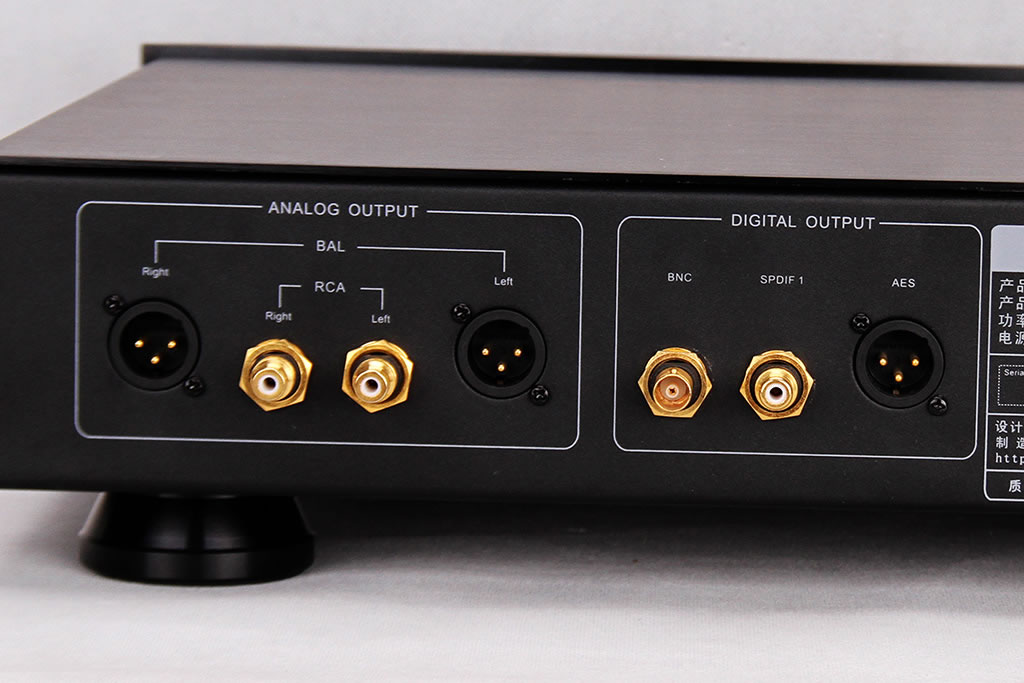

Digital output S/PDIF 0.5VP-P 75Ω

         BNC 0.5VP-P 50Ω

         AES 0.5VP-P 110Ω

Power supply voltage 220V±5% 50Hz

Power consumption 25W

Net weight 12Kg

Gross weight 14Kg

Product size (WxDxH) 440x385x114mm

Packing size (WxDxH) 513x454x186mm

Packing form 1pc/carton

Place of Origin China

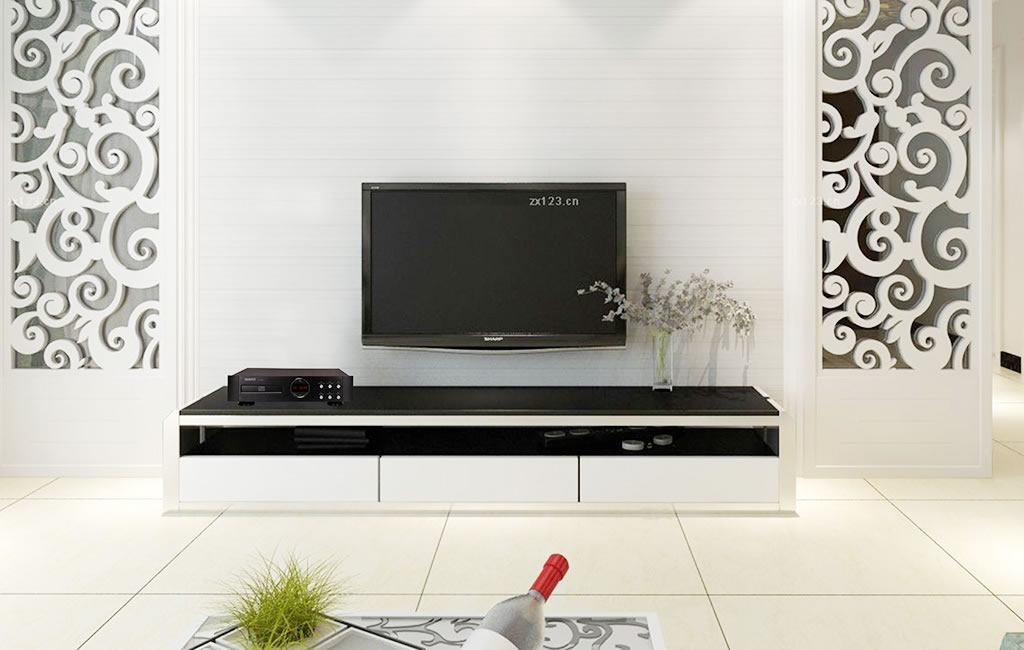

Home effect:
