Features:

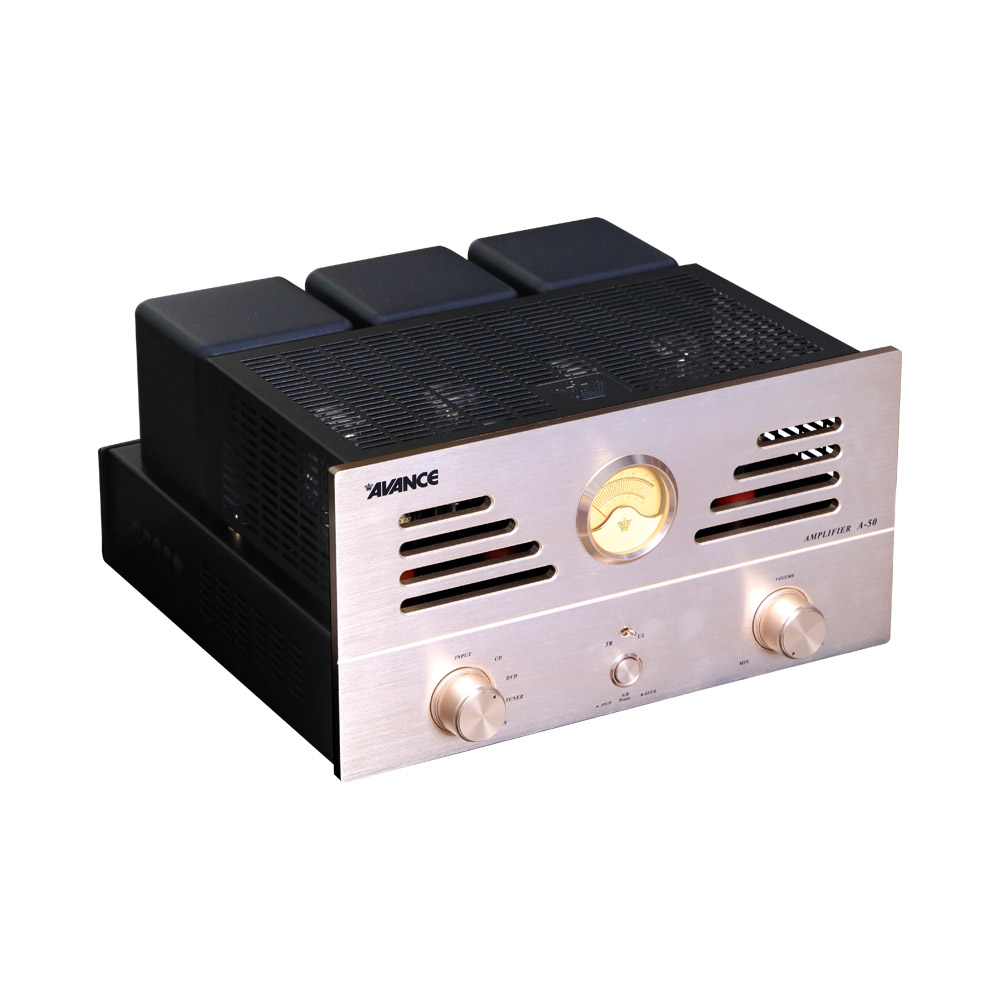

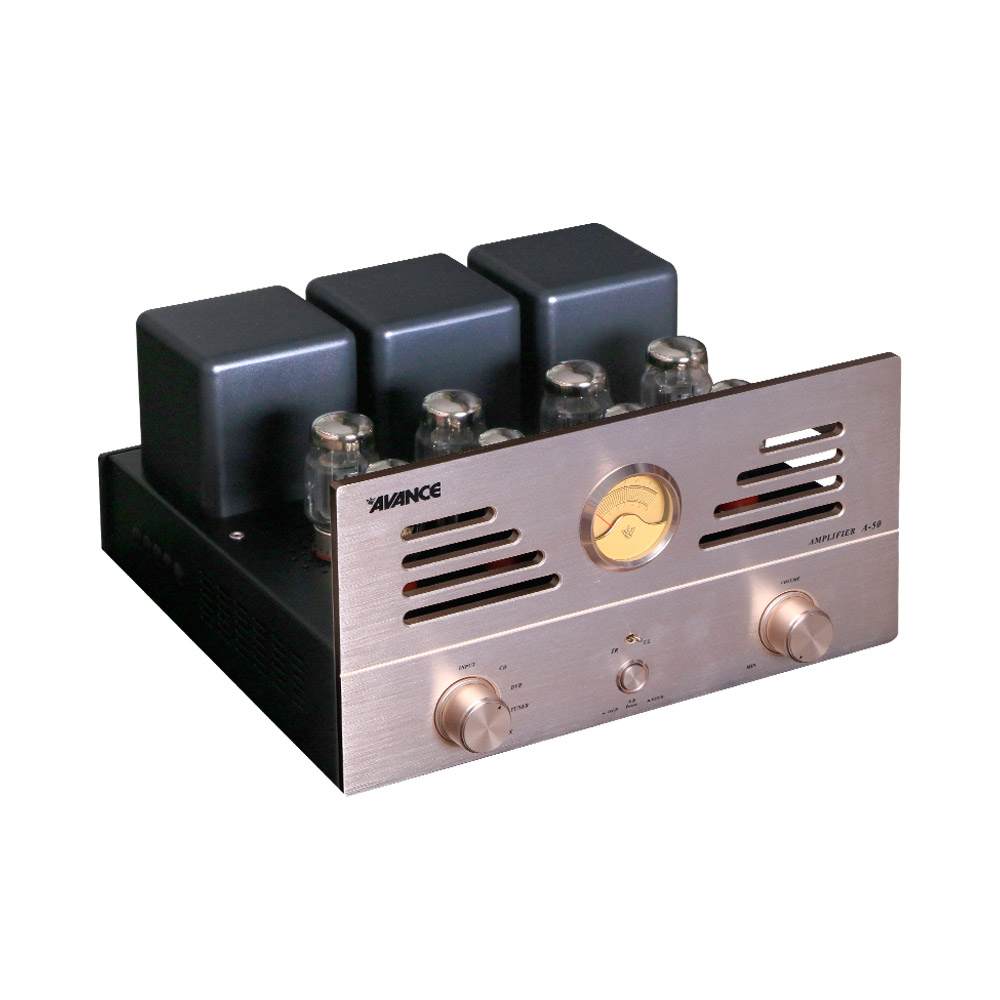

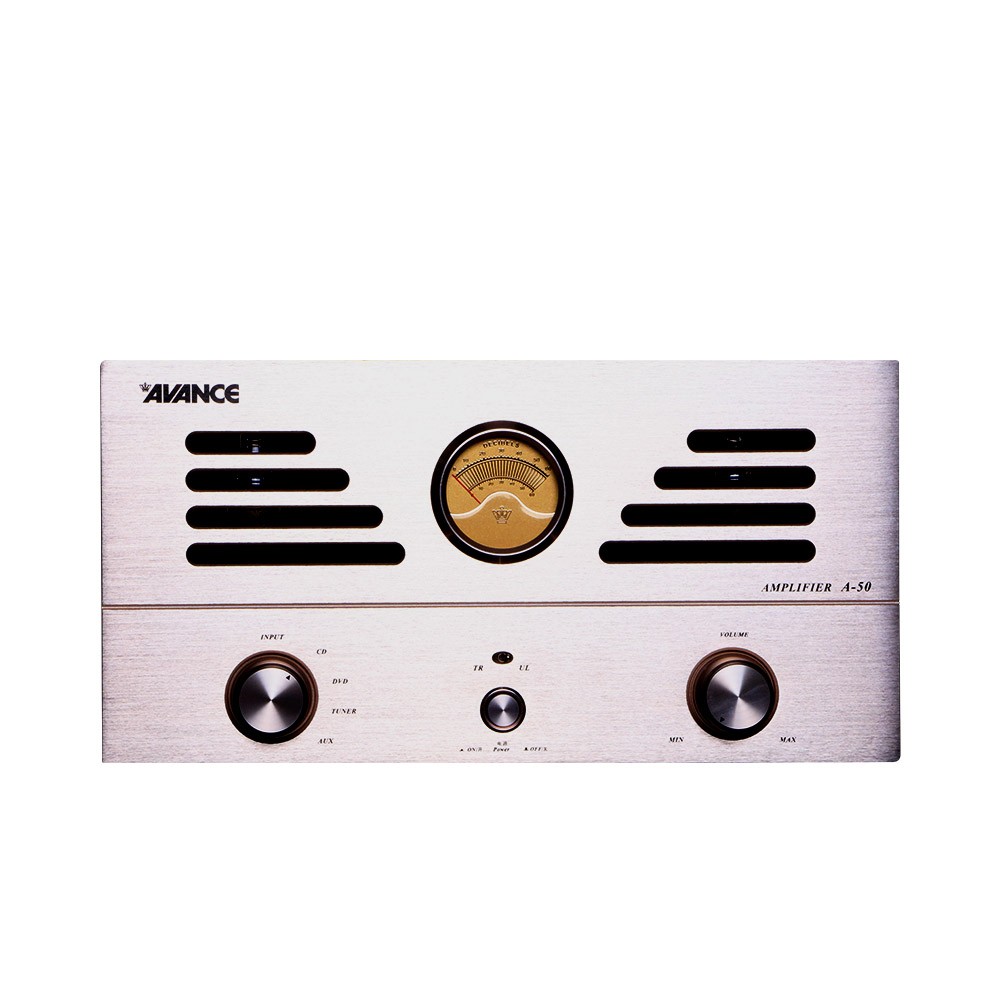

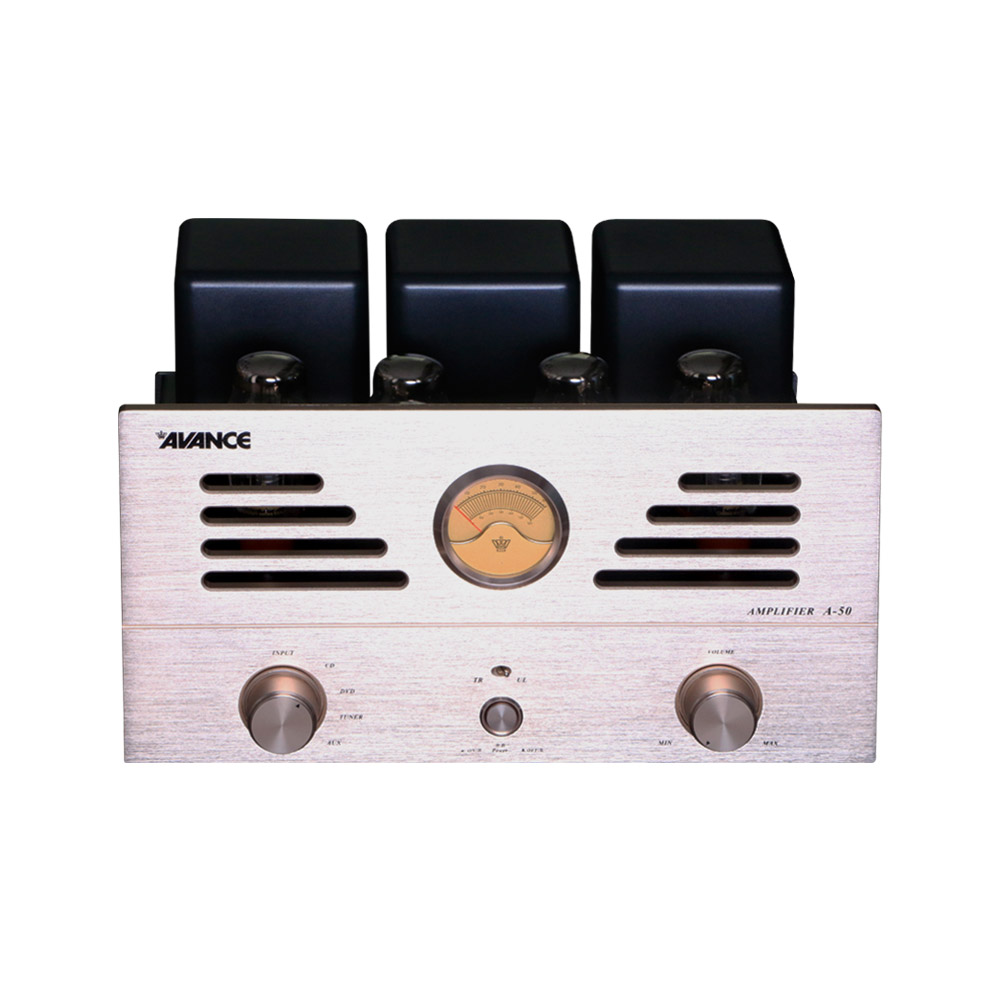

1. A-50 pure gallbladder, pure hand-made, the whole machine adopts scaffolding welding
2. Adopt two high-quality broadband response EI output transformers
3. High-power toroidal power transformer specially developed for this machine
4. Two 6N9P and 6N8P vacuum tubes are used in the front stage
5. The rear stage uses four KT88 vacuum tubes for class AB push-pull power amplification
6. The plug-in vacuum tube protective cover is easy to install to prevent burns when the electronic tube is overheated
7. Adopt fever-grade imported signal processing wires

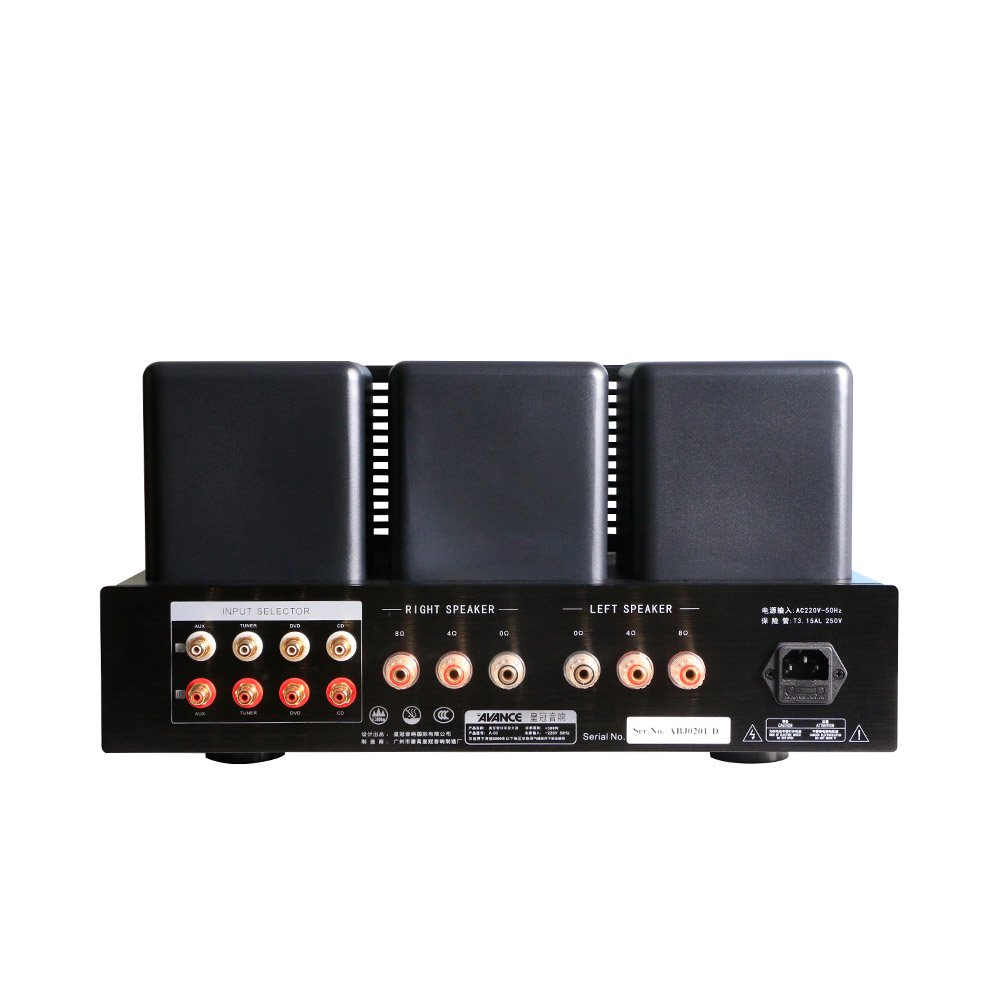

8, 8 ohms provide speaker output impedance selection
Product parameters:
Input sensitivity 600mV/47KΩ
Output power FL/FR50Wx2CH
Frequency response 20Hz-30KHz
Harmonic distortion 0.50%
Signal to noise ratio 90dB
Power consumption ≤300W
Power supply voltage ~220V±5% 50Hz
Net weight 28Kg/set
Gross weight 36.5Kg/box
Product size (WxDxH) 430x400x215mm
Packing size (WxDxH) 546x516x341mm
Packing form 1pc/Carton
Place of Origin China
