location:Home >Product List >Professional Series >Pre-effects >KC-50

◆Using ADI DSP chip combined with Crown’s latest DSP audio algorithm ‘high precision, fast speed and high stability’;

◆Using ADI's top audio digital-to-analog conversion chip "Present perfect high-fidelity sound";

◆The two microphones are independently adjustable.

◆The tuning interface has a sound field spectrum display to assist tuning;

◆Each channel has the function of speaker processor, which makes the system more perfect combination;

◆Two kinds of microphone bottom sound are optional, choose different bottom sound according to different speakers and environment, to achieve a perfect product combination;

◆The dedicated microphone independent processing circuit makes the microphone sound more beautiful (optimized sound);

◆The OLED color display enhances the visual sense and intuitively displays the tuning connection;

◆Microphone 15-segment parameter balance adjustment, music 7-segment parameter balance adjustment, each channel speaker correction 7-segment parameter balance adjustment, effect 3-stage parameter balance adjustment;

◆Each channel is equipped with phase adjustment, 50 millisecond delay adjustable, mute independent controllable, pressure limit, music microphone effect volume independent controllable, high and low cutting slope adjustable.

◆Crown's latest 8-level anti-howling technology.

1.4 groups of microphone inputs, microphone high-pass filter and low-pass filter, with dual microphone inputs, MIC A and MIC B, dual independent 15-band parametric equalization

2. Stereo analog music input, 15-band parametric equalization, high-pass filter and low-pass filter

3.3 groups of audio and video input automatically with priority, background music BGM function

4.6 independent channel output, each channel can be independently mixed, high and low frequency divider, main output and surround 7-band parametric equalization, center 7-band and super bass 5-band parametric equalization, delay, root pressure, polarity conversion , Volume adjustment, mute 5. Manager, user and primary mode, password management; password key lock function

6. Have 10 groups of user parameter storage and recall

7. VOD song control interface, wireless infrared remote control and wire control function

8. Drive-free USB interface, real-time control of all parameters through PC software

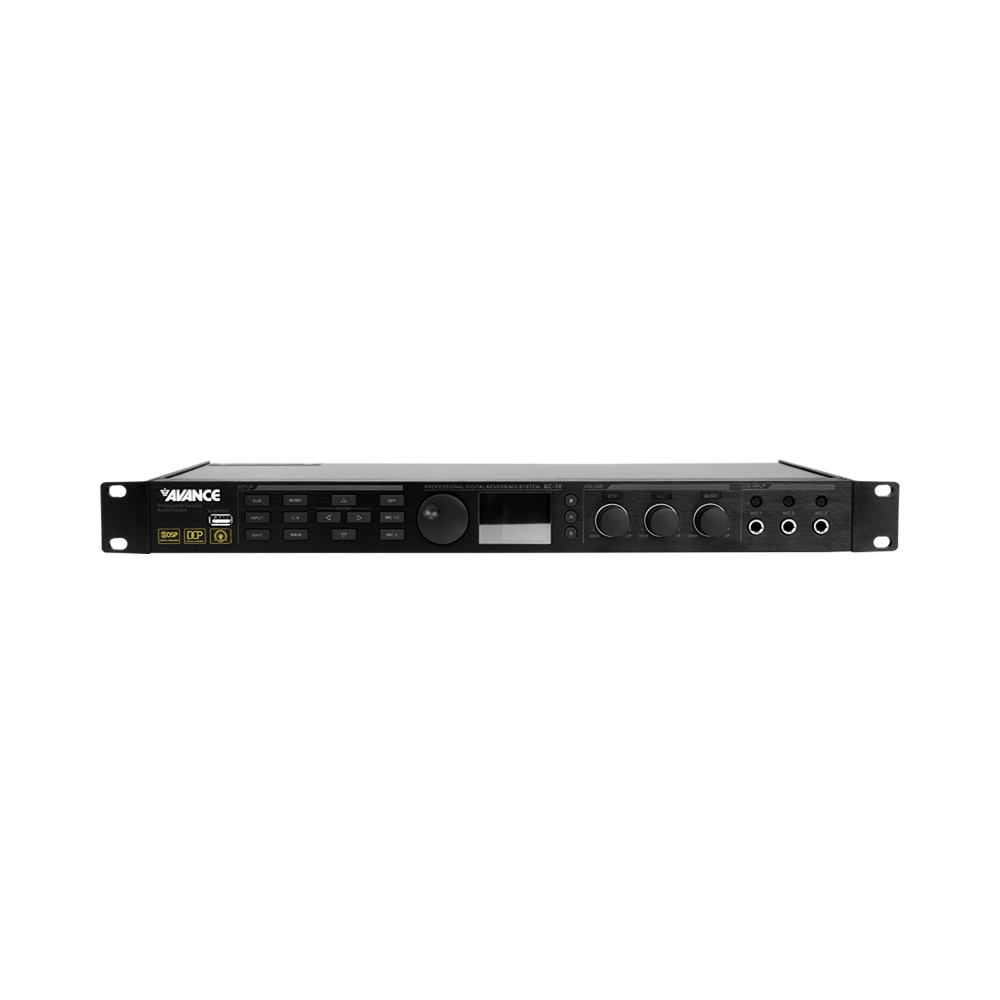

Bluetooth receiving port


Input selection

Manual save button

Music mode selection key

Enter center key

SYSTEM, press this key to enter the system parameter adjustment

Up/down parameter selection buttons during function parameter adjustment

Menu page up/down button when function parameter is adjusted

Effect mode selection key

Mode selection keys for microphone input 1 and input 2

Mode selection key for microphone input 3

Knob for adjusting parameters when adjusting function parameters

Infrared remote control receiving window

OLED display

Music rise and fall control and reset

Effect volume adjustment button

Microphone volume adjustment button

Music volume adjustment button

Microphone input socket and microphone input adjustment
