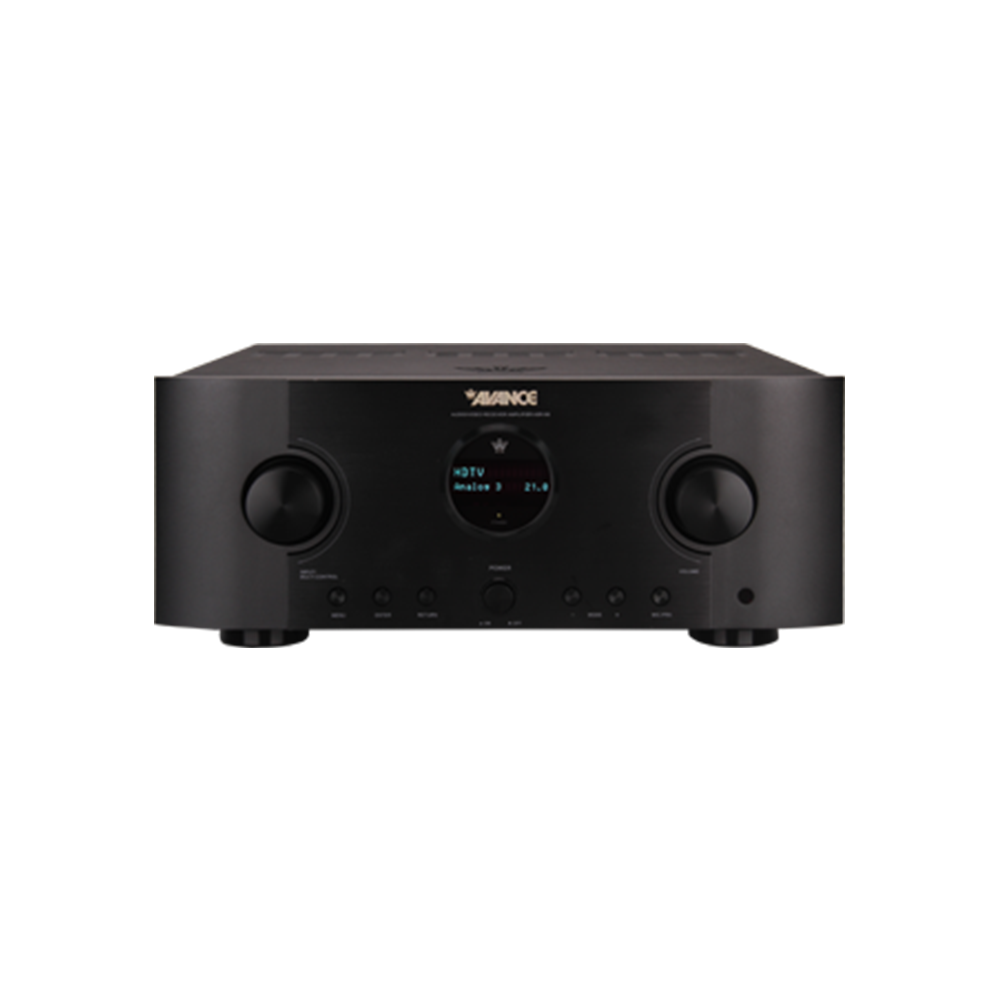

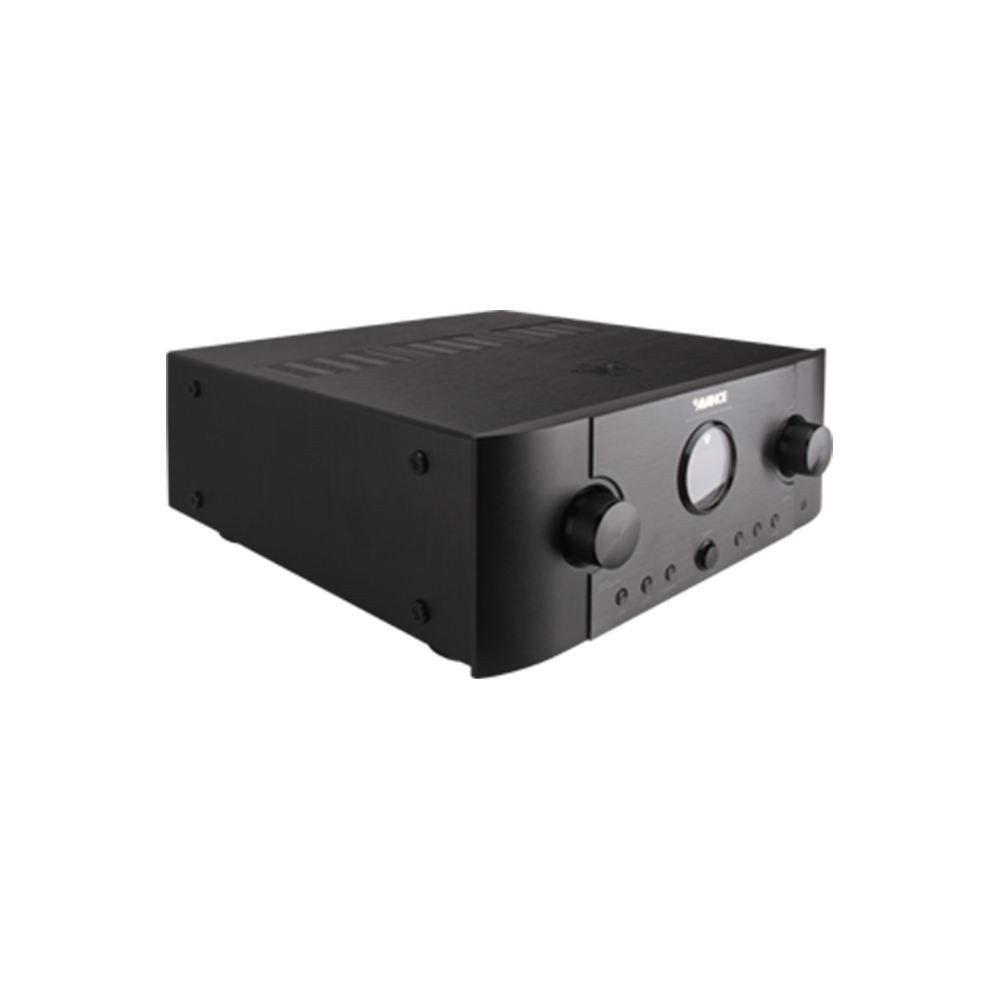

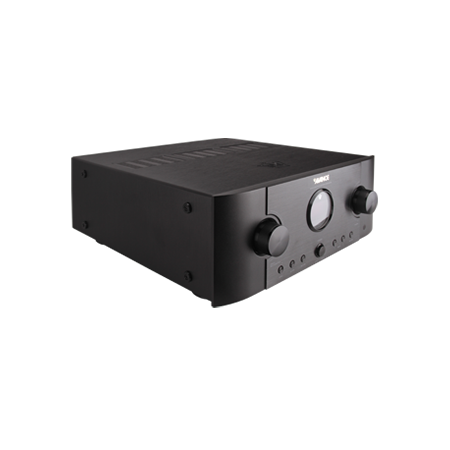

ASR-90
In the current AV market, no one is more keen to talk about the new format of high-definition. The launch of various new products is almost entirely based on high-definition. The Danish AVANCE, which is known for its sound ring, took the lead in bringing
characteristic
specifications
pictures
explain
video

Features:



1. Luxurious black metal brushed panel, fine workmanship



2. HD, SD, matrix audio decoding



3. The latest HDMI 1.4 HD chipset



4. The latest HD audio format Dolby/DTS decoding



5. High-power 7.1 channel output



6. AVANCE unique push-pull design circuit, video processing technology



7. Grouped tones, 11-band parameter equalizer



8. Professional-level karaoke effect processing



9, AM, FM radio function



10. Support 3D video playback, support HDMI CEC control, support HDMI ARC audio return, support 8CH LPM

Product parameters:

Input sensitivity 200mV/47KΩ

Output power 150Wx7CH/1kHz, 8Ω

Frequency range 10Hz-60KHz

Harmonic distortion ≤0.1%

Signal to noise ratio 90dB

Power consumption ≤1200W

Power supply voltage ~220V±5% 50Hz

Net weight 19.2Kg/set

Gross weight 23Kg/carton

Product size (WxDxH) 440x460x185mm

Packing size (WxDxH) 560x550x275mm

Packing form 1pc/Carton

Place of Origin China
