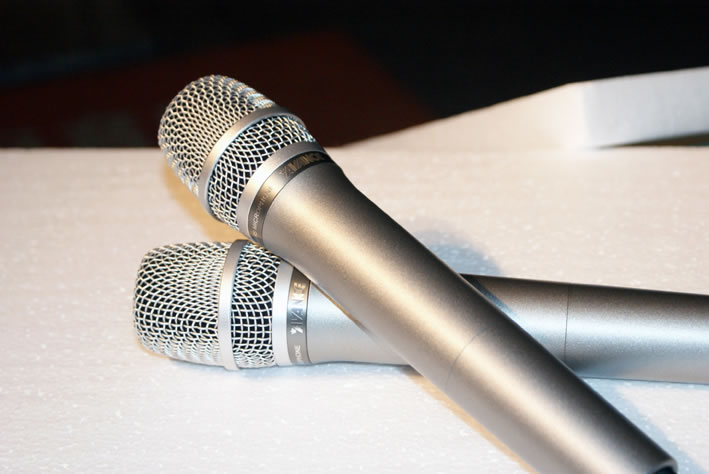

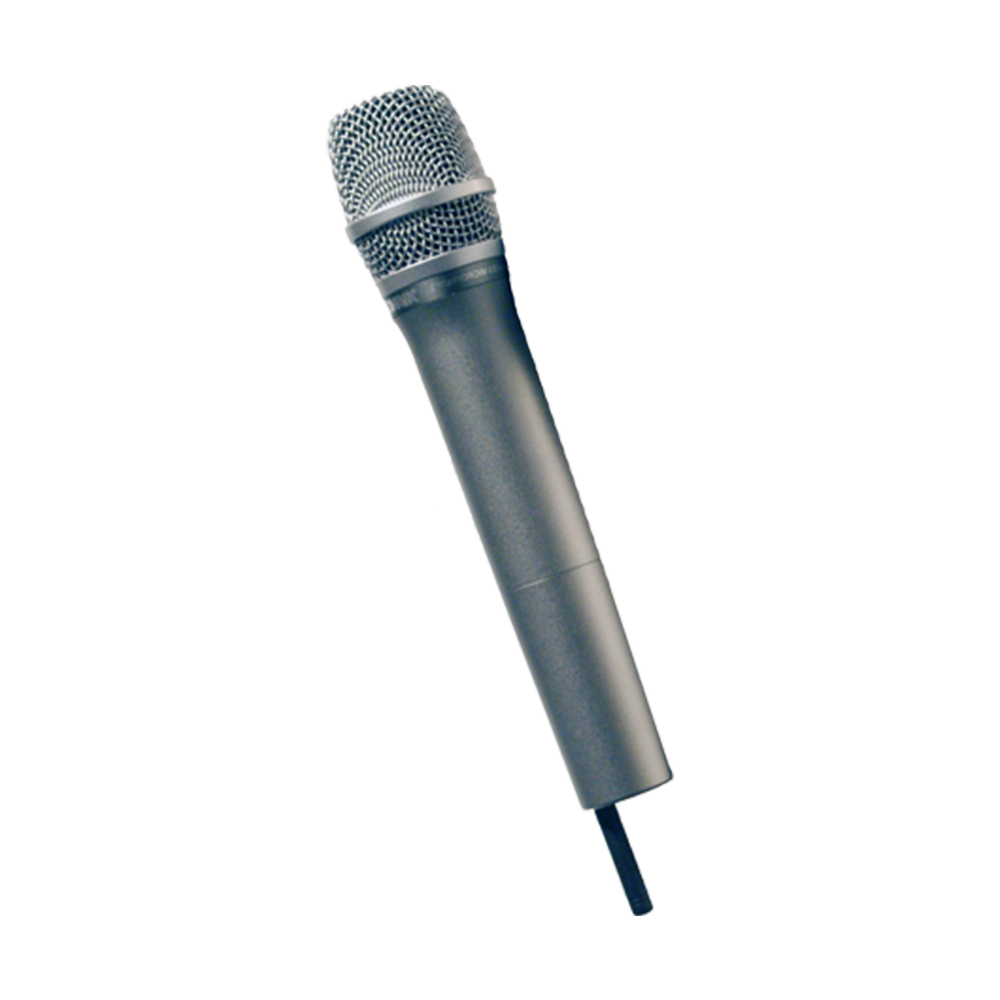

Handheld microphone
Carrier frequency range 845.2 to 875.9MHz
Modulation method UHF
Frequency response bandwidth 100Hz to 16KHz
Frequency stability (+50℃-10℃) 0.005%(20ppm)
Maximum modulation frequency 1KHz/frequency deviation 24KHz
Distortion typ 0.2%
Compression expander typ 0.2%
Signal to noise ratio typ 100dB(A)
RF output 30mW
Current consumption typ 100mA
Voltage requirement 4.5V size
Battery life typ 10hours
Input spiritual sensitivity-
Audio rated input 80mV
Deviation 100mV/1KHz
Input impedance 100 meters
Compression sensitivity-
Audio output -

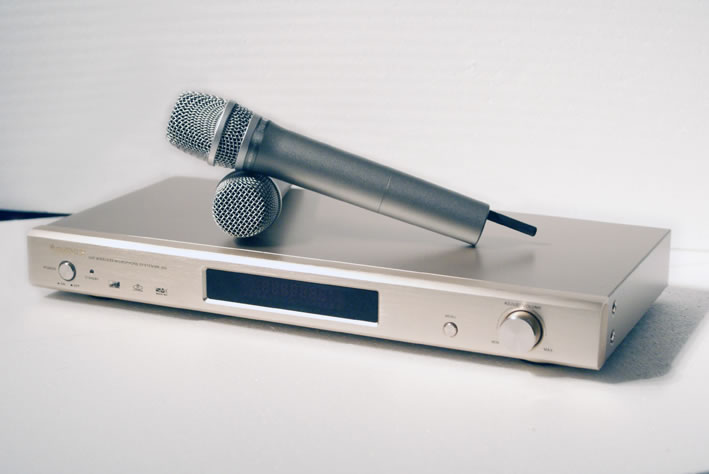

Receiver
Carrier frequency range 845.2 to 875.9MHz
Modulation method UHF
Frequency response bandwidth 100Hz to 16KHz
Frequency stability (+50℃-10℃) 0.005%(20ppm)
Maximum modulation-
Distortion typ 0.2%
Compression expander
Signal to noise ratio typ 100dB(A)
RF output-
Current consumption 120+120mA
Voltage requirements AC 11V 400mA
Battery Life -
Input spiritual sensitivity typ -100dBm
Audio rated input-
Deviation-
input resistance -
Operating range 100 meters
Compression sensitivity -98dBm
Audio output 400mV
