technical parameter
Is it active?
The main technical parameters of the power amplifier:
Input sensitivity 135mV/22KΩ
Output power 60W (100kHz, 4Ω)
Frequency response range 35HZ-120Hz
Harmonic distortion 0.5%
Signal to noise ratio 88dB

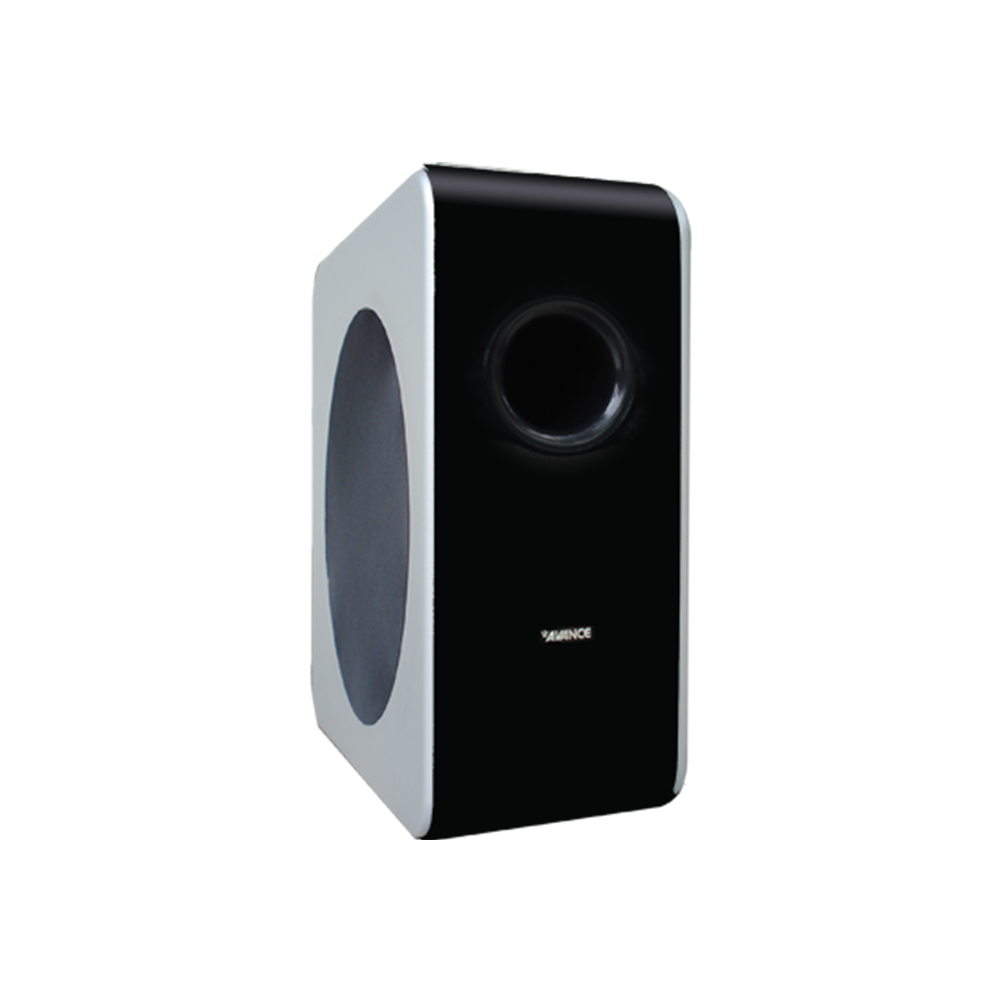

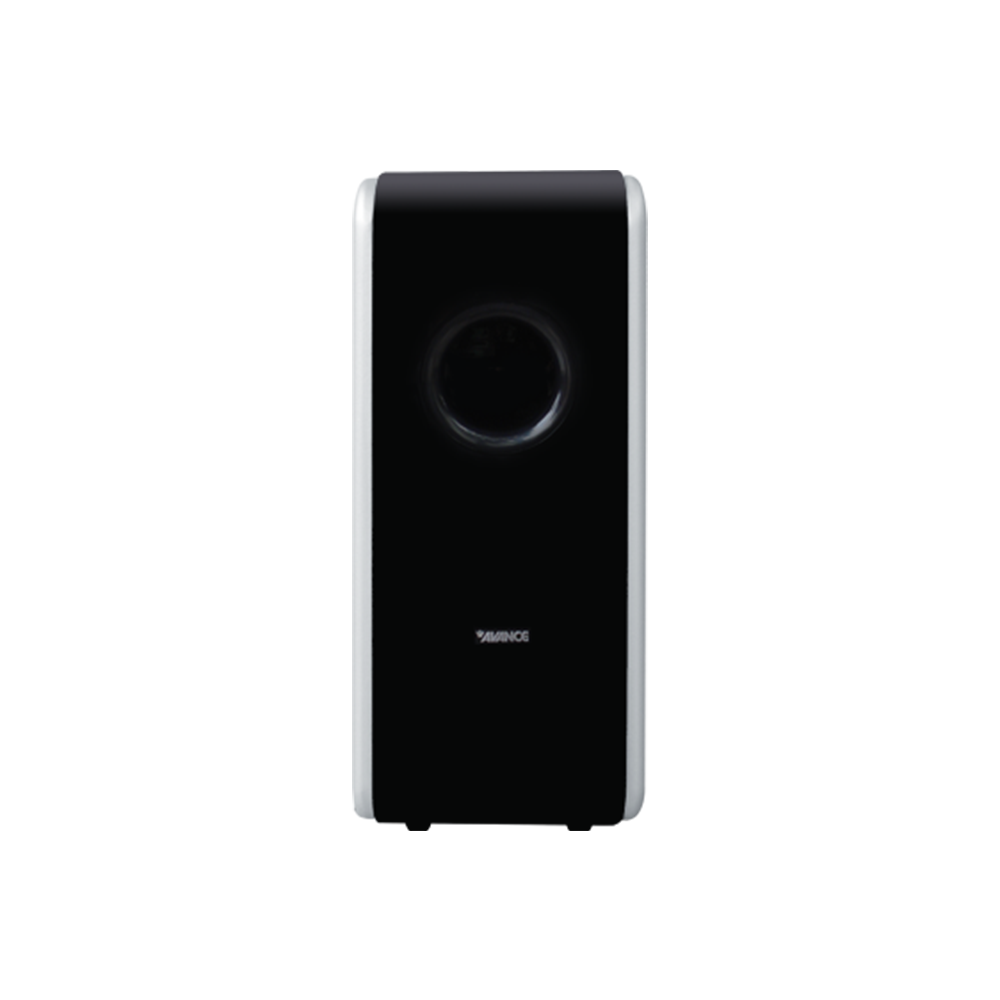

The main technical parameters of the speaker:
Impedance 4Ω
Matching power 40-150W
Frequency response 35Hz-200Hz
Sensitivity 86dB
Woofer 1X10 inch
General specifications:
Power supply ~220V±5%, 50Hz
Power supply power ≤200W (rated condition)
Size 175X400X400mm
Weight 13Kg
