1. Decoding mode
Compatible with current market decoding functions
2. DSP sound field mode
Hall has
————————————————
Disco has
————————————————
Pops have
————————————————
Jazz has
————————————————
Live has
————————————————
Movie has
————————————————

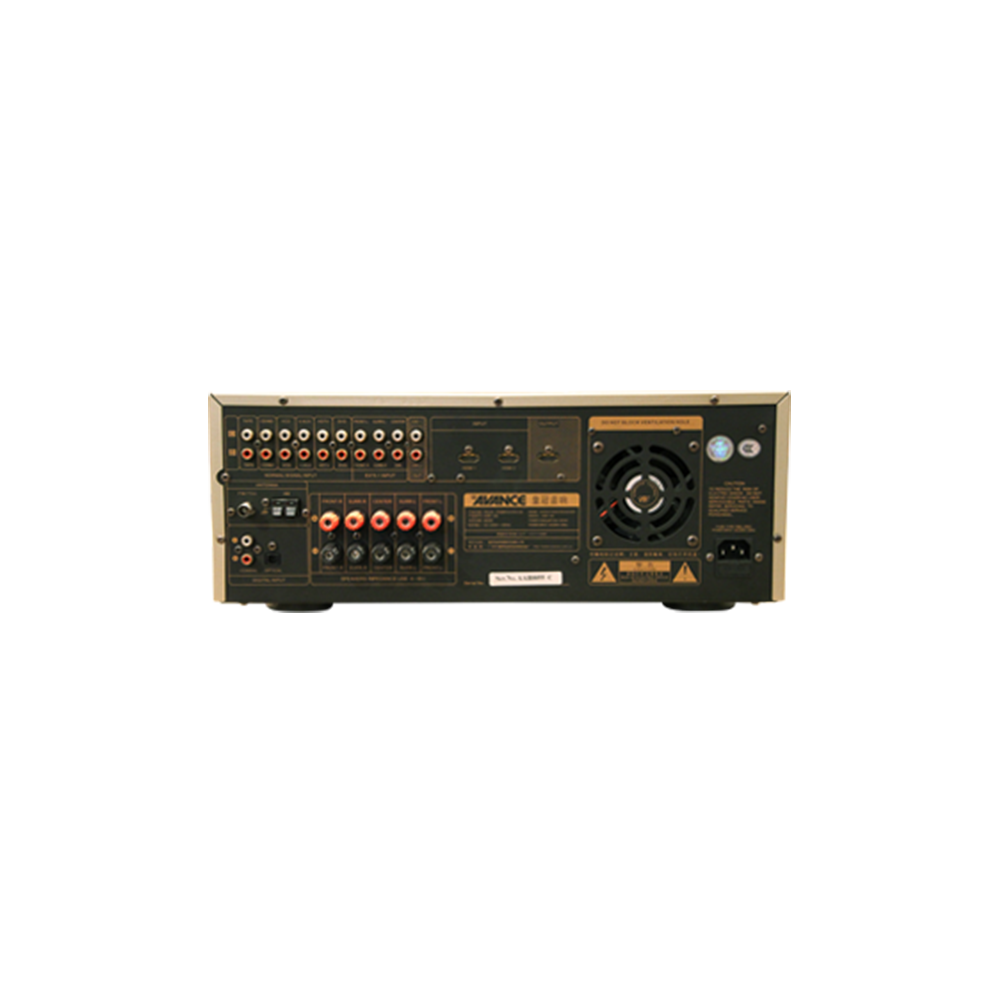

3. Input/output terminals
Coaxial 2 groups
————————————————
Fiber 1 group
————————————————
Audio input 6 groups of analog terminals
————————————————
Microphone input MIC1+MIC2 total 2 groups
————————————————
HDMI input/output interface 2 sets of HDMI input/1 set of HDMI output
Preamplification output only SW output
————————————————
5.1 channel input terminal interface has 1 group
————————————————
Speaker (A/B) A only
————————————————
Four, input and output parameters
Stereo output (FL/FR) 85W+85W (8 ohms); 0.7% THD
————————————————
Multi-channel output
Front channel (FL/FR) 85W/channel(8 ohms); 0.7% THD
————————————————
Center channel (CENTRE) 85W (8 ohms, 1% THD)
————————————————
Rear channel (SL/SR) 85W/channel(8 ohms, 1% THD)
————————————————
Subwoofer channel (SUB) Front stage output 2V (SW1/SW2)
————————————————
Total harmonic distortion 0.5% (1kHz)
————————————————
Input (sensitivity/impedance)
————————————————
MIC(MV) 30mv/600 ohms
————————————————
TAPE, CD/MD, VCD, VAUX, HDTV DVD. 450mV/47k ohms
————————————————
Frequency response
MIC 10Hz-12kHz +1dB/-3dB
————————————————
LINE 10-60KHz +1dB/-3dB
————————————————
Signal to noise ratio
————————————————
MIC 76dB (A weighting)
————————————————
LINE line 88dB (A-weighted)
————————————————
V. Convenient functions
Frequency display
————————————————
Intelligent start automatically detects the input signal
————————————————
Intelligent volume control
————————————————
Each channel independently adjusts the level function
————————————————
Perfect speaker setting management (bass management) function
————————————————
Power-off memory
————————————————
Multi-function remote control
————————————————
Luminous remote control button
————————————————
FM/AM radio
————————————————
Input sensitivity 180mV/47KΩ
Output power 110Wx5/4Ω
Frequency response 10Hz-50KHz
Harmonic distortion ≤0.5%
Signal to noise ratio ≥85dB
Power supply voltage ~220V±5% 50Hz
Net weight 14Kg
Gross weight 16.5Kg
Product size 430x415x170mm
Packing size 510x485x515mm
Packing form 2pc/Carton
