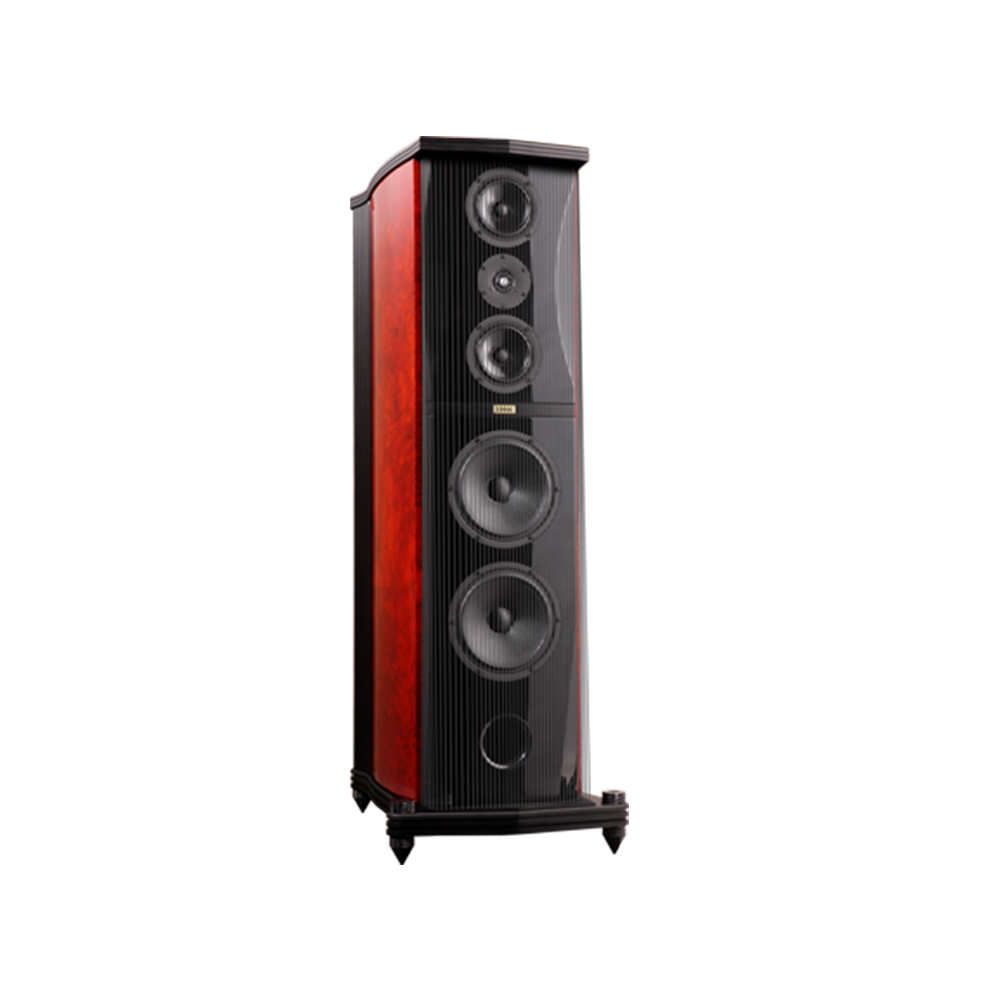

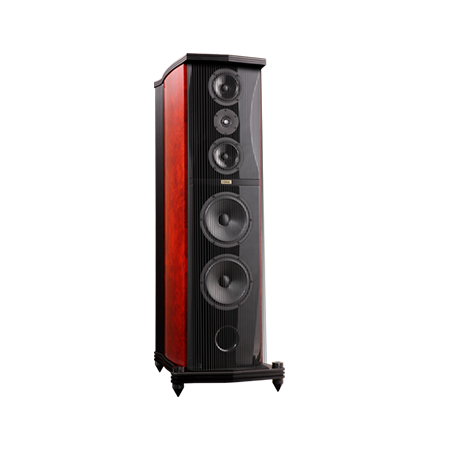

CENTURY

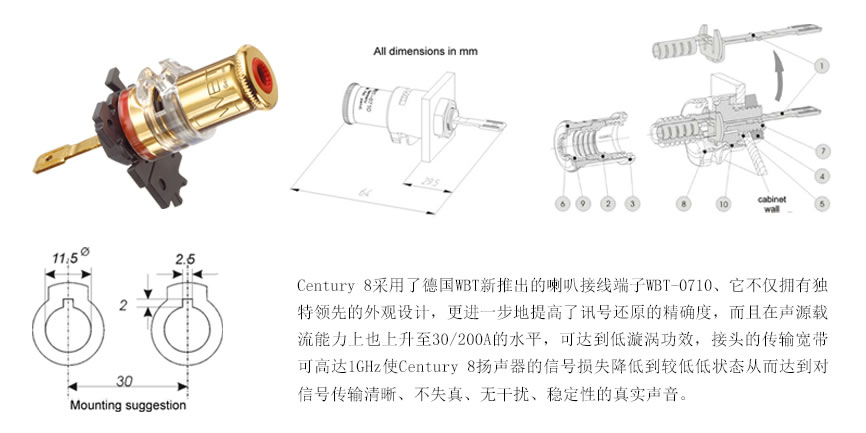

Century is the middle model in the Century series. It uses the new WBT-0710 speaker terminal WBT-07 from Germany. It not only has a unique leading design, but also further improves the accuracy of signal restoration, and the current carrying capacity of t
characteristic
specifications
pictures
explain
video

In the new century, AVANCE once again embodies the advantages of daring to innovate. The flagship Century series speakers launched in 2011 use Scan-speak high-end units, non-resonant multi-chamber low-frequency compression technology, Italian craft rosewood amber piano paint cabinet, and 24K gold-plated LOGO And high-end WBT terminals, coupled with fully enclosed independent chamber design technology and multi-angle reflection design technology, once again broke the silence of the audio industry for more than thirty years.



The new flagship series adopts Scan-speak's newly developed Revelator tweeter. Its double-folded ring diaphragm and patented phase cone design break the tradition, allowing high-frequency response to reach more than 40KHz, and the patented SD-2 neodymium basin symmetrical drive system It also reduces distortion, enhances fidelity, and makes the quality of high-frequency sounds more transparent and bright. The mid-range and low-frequency parts use Scan-speak classic units, and its patented SD-1 symmetric drive magnetic circuit system technology makes the mid-low frequency more full and strong.



The cabinet is also connected with German WBT original binding posts, 6N high-purity oxygen-free copper material, combined with special fever-grade wire, which can reduce the signal when connected to the speaker to a lower level. The vertical two-line crossover design meets the high-level professional wiring method of audiophiles, and can independently push the high and low units, effectively eliminating phase drift. The gold-plated connecting rod can withstand the impact of large currents, has more high-frequency transmission characteristics, and the sound is more pure and non-staining, transparent and bright.

Frequency response range 30Hz~40KHz

Rated impedance 4Ω

Sensitivity 86dB

Rated power 50W~200W

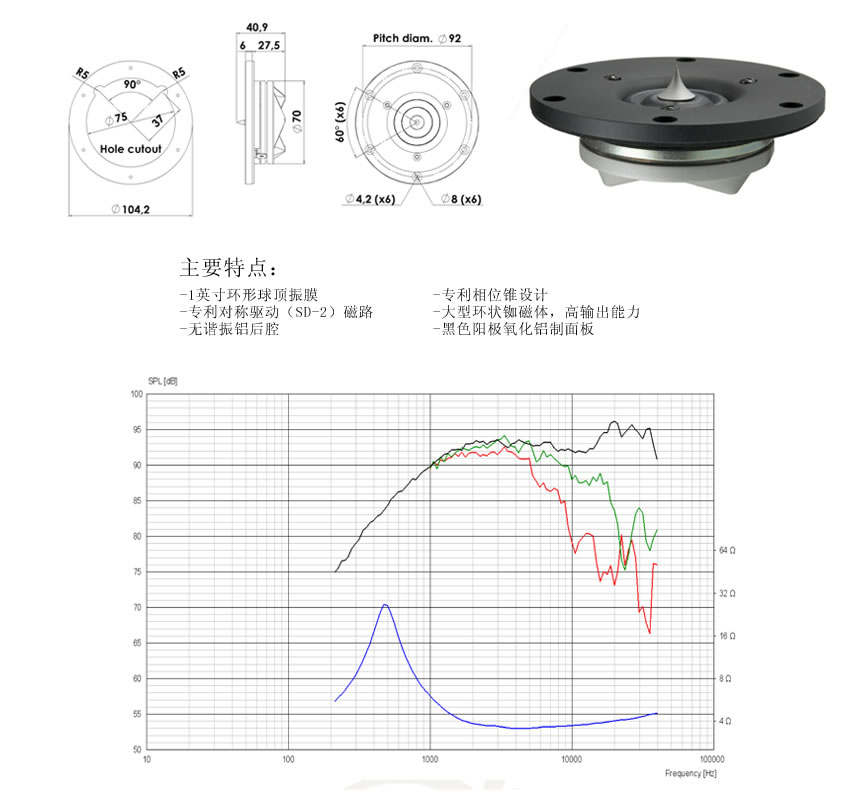

Tweeter 1x1"Scanspeak

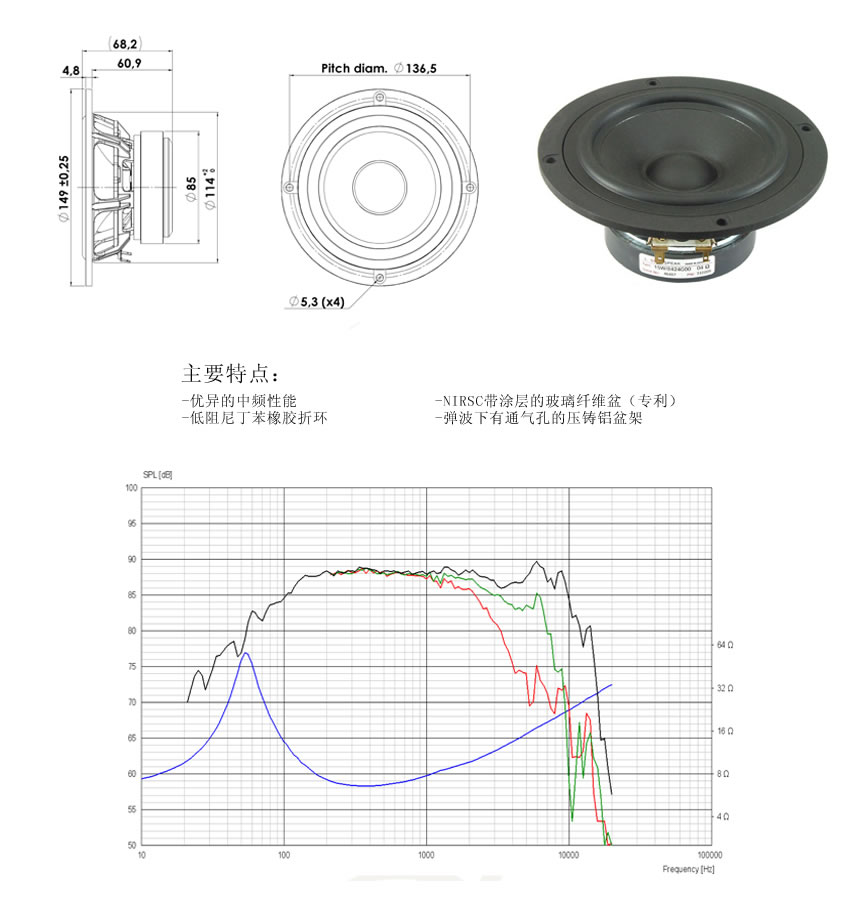

Midrange unit 2x5.25" Scanspeak

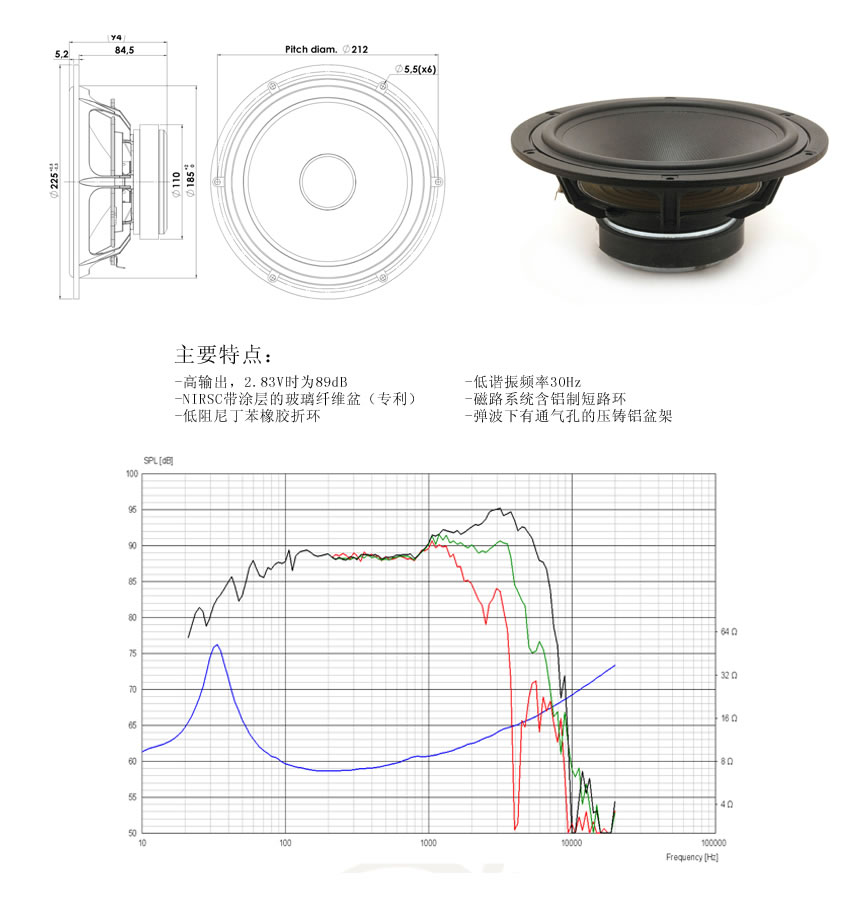

Woofer 2x8" Scanspeak

Net weight 103.5Kg/piece

Product size 468x619x1338mm

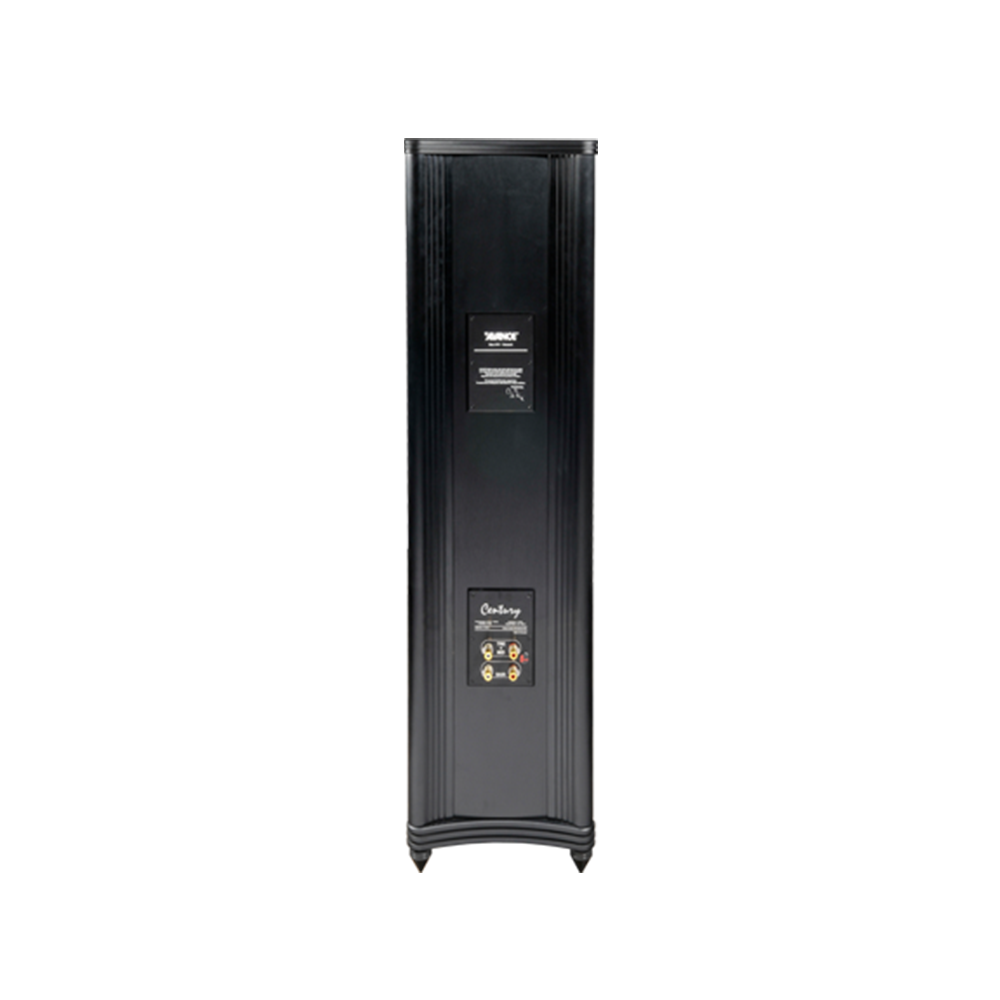

Terminal block
