Features:
1. The soft start system is turned on to protect the power amplifier and power supply system from current impact
2. Balanced two-channel standard structure
3. The output circuit with limiter, when the input voltage amplitude is too large, it will automatically compress the amplitude of the input voltage to avoid wave cancellation output and protect the speaker system from being burned due to overload
4. Perfect protection circuit: including DC output protection, overload protection, short circuit protection, and a fuse protector on the power amplifier backplane
5. High-rigidity thick panel with steel high-strength chassis, durable, good seismic performance and easy maintenance

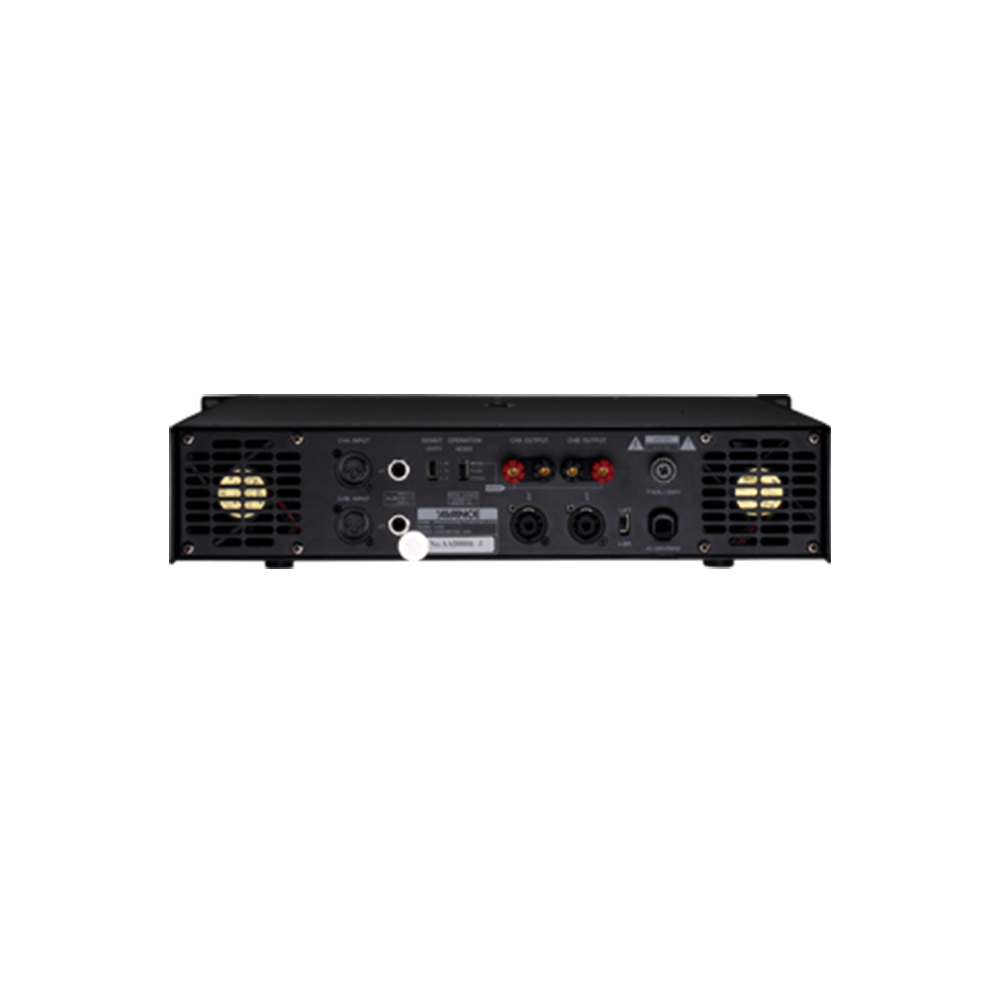

6. Canon, balanced input sockets, professional terminal output terminals, to meet the requirements of fast and convenient system connection during engineering and mobile performances
7. Two working modes: dual channel and bridge;
Product parameters:
Input sensitivity 350mv
Output power 600W/8Ω×2CH
Output power Bridge 1600W/8Ω
Frequency response 10Hz-350KHz
Harmonic distortion 0.5%
Signal to noise ratio 90dB
Power consumption 180W
Power supply voltage ~220V±5% 50Hz
Net weight 25Kg
Gross weight 29Kg
Product size (WxDxH) 485x480x100mm
Packing size (WxDxH) 575x560x155mm
Packing form 1pc/Carton
Place of Origin China
